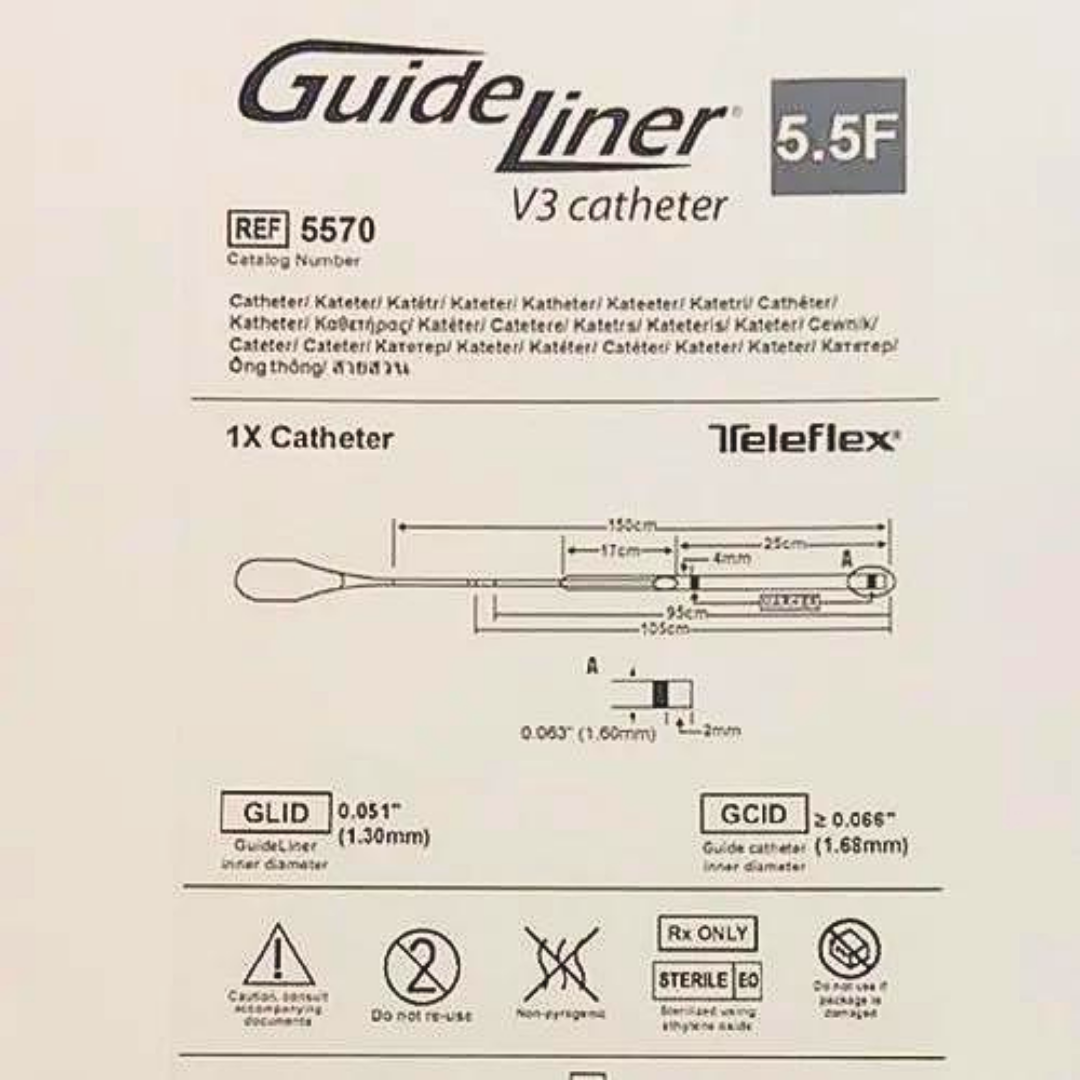

TELEFLEX GLIDE LINER V3 CATHETER

Guide extension catheter with half-pipe technology

In 2009, the GuideLiner^® Catheter revolutionized the concept of guide extension, creating new possibilities in interventional cardiology. Now in its third generation, the GuideLiner^® V3 Catheter continues to build on a history of innovation and performance—one that’s been demonstrated with more than half a million catheters in cath labs around the world.¹

Designed to perform

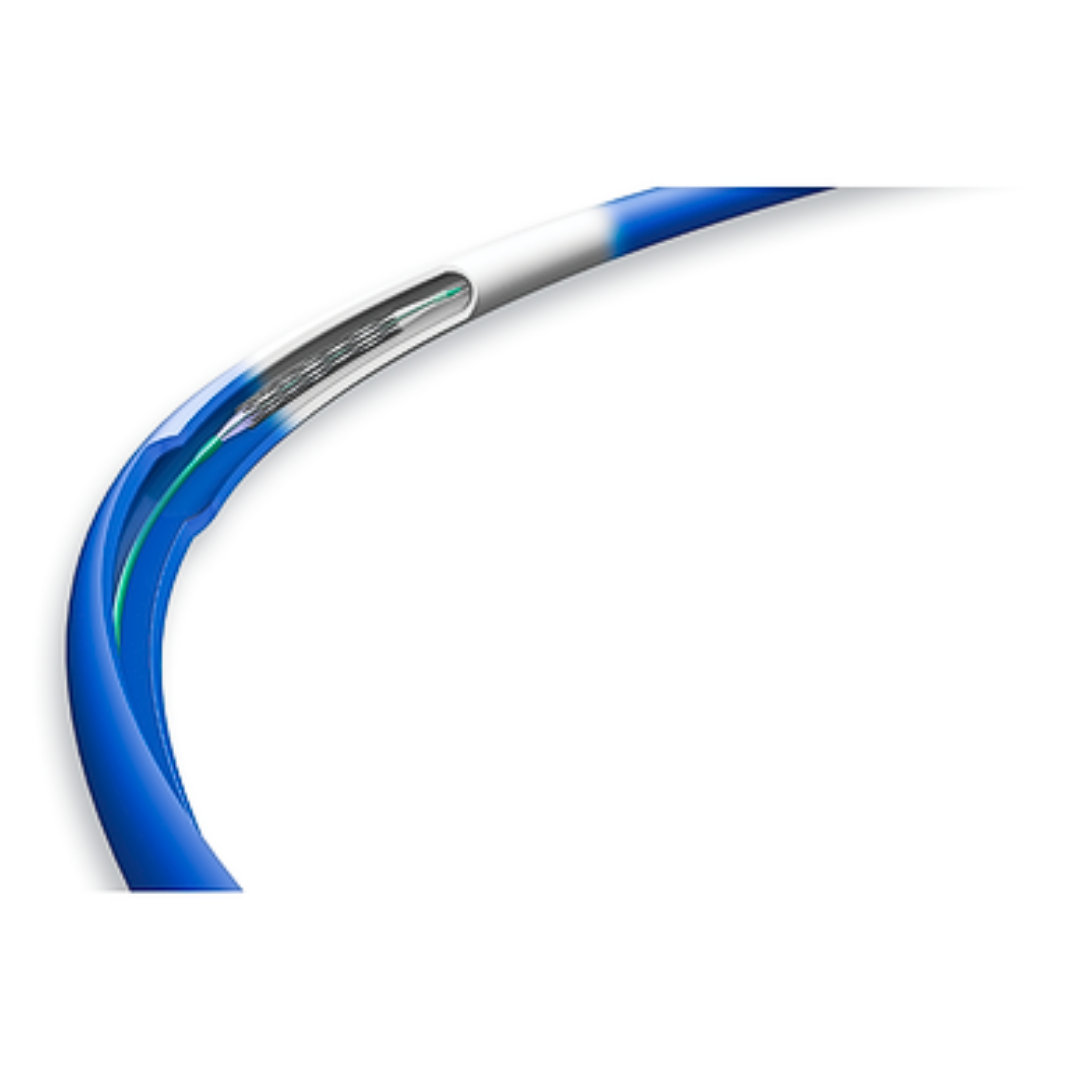

It’s not just the proprietary half-pipe technology that sets the GuideLiner^® V3 Catheter apart. The coil-reinforced extension is specifically designed to enable dependable deep-seating for the delivery of interventional devices to distal locations.

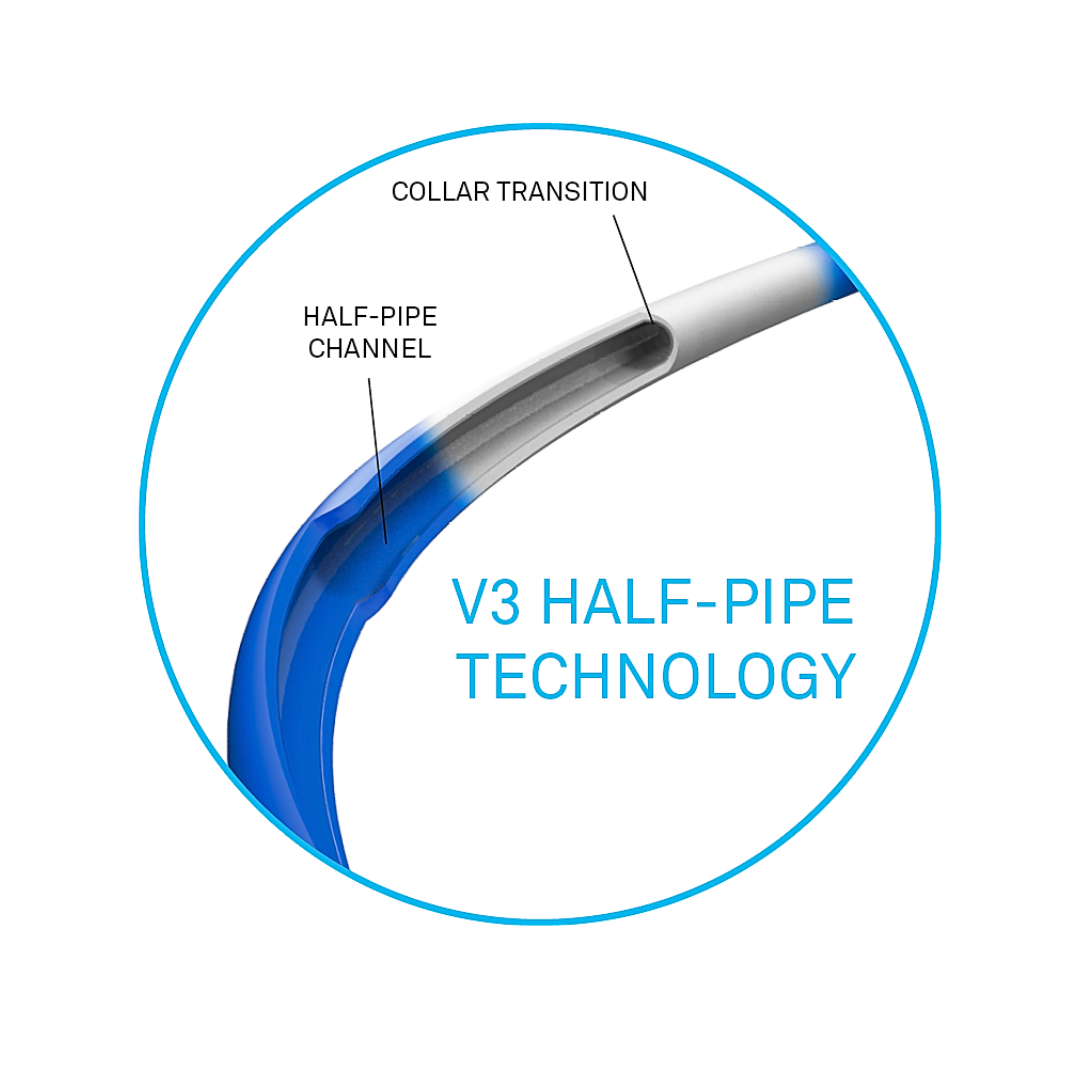

Half-pipe technology

The half‑pipe channel is designed to minimize device/collar interaction by directing and aligning devices through the collar transition, facilitating smooth device entry and seamless delivery.

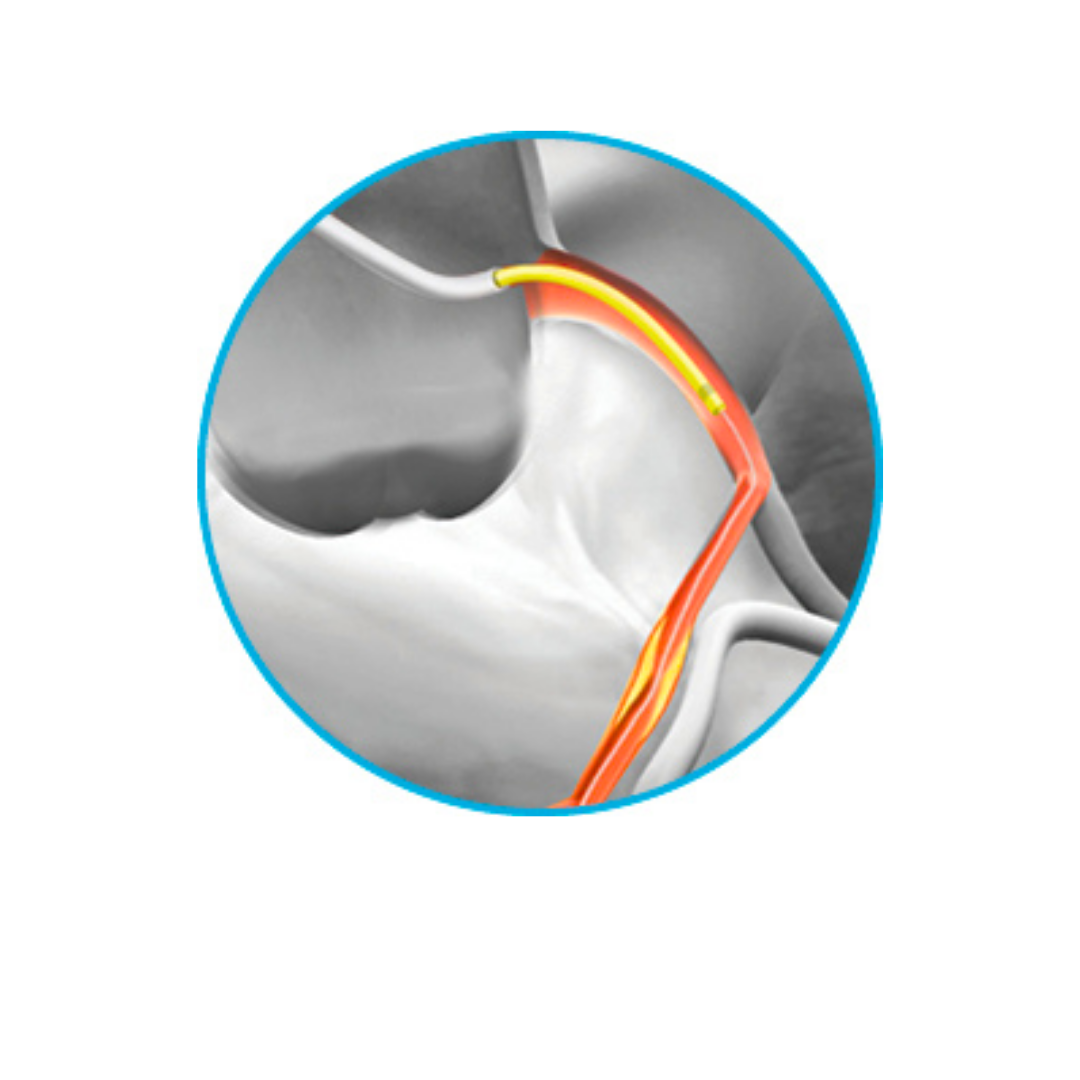

Tortuosity tested

From challenging lesions to impossibly acute angles, percutaneous coronary interventions have grown more complex. Since being introduced, GuideLiner^® Catheters have been recognized by interventionalists as essential tools for addressing difficult anatomies.

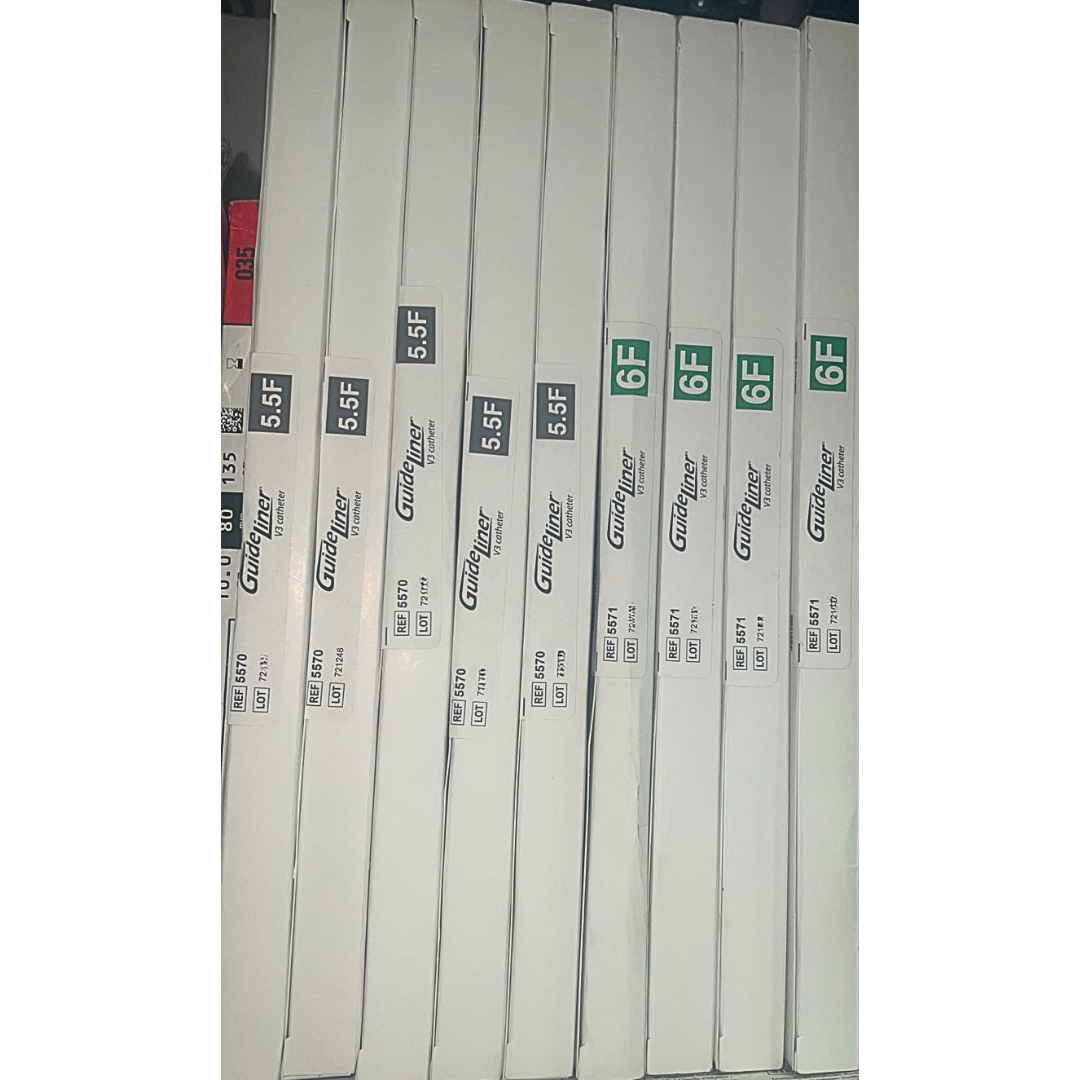

Available in five sizes: 5, 5.5, 6, 7 and 8 Fr.

Add to wishlist

Description
Reviews (0)

TELEFLEX GLIDE LINER V3 CATHETER

Reviews

There are no reviews yet.

Be the first to review “TELEFLEX GLIDE LINER V3 CATHETER”

Category: products

Related products

wishlist

RESOLUTE INTEGRITY STENT

Resolute Onyx DES

for coronary artery disease

Resolute Onyx™ is a drug-eluting stent (DES) that’s different by design, optimised for complex PCI, and proven safe and effective in real-world, high bleeding risk patients on 1-month dual antiplatelet therapy (DAPT).¹

Resolute Onyx DES is different by design to address your DES needs and a wide range of patient anatomies. It features:

Best-in-class deliver ability
Enhanced visibility with thinner struts
Smooth side branch access
Fast healing
The broadest diameter range

Best-in-class deliverability

Single-wire design

Resolute Onyx DES is made from a single wire, which gives it a fluid range of motion and provides the flexibility needed for best-in-class deliverability.²

Sinusoid-formed wire

Helical wrap

Laser-fused

Competitive comparison

Resolute Onyx DES is more deliverable than laser-cut SYNERGY™* XD and XIENCE Skypoint™*, which are stiffer.

Deliverability comparison — 3.0 mm DES²

(Lower is better)

Orange and gray bar chart comparing deliverability of Resolute Onyx to Synergy XD and Xience Skypoint

Enhanced visibility with thinner struts

Platinum-iridium core within Resolute Onyx DES increases visibility for accurate stent placement without compromising strut thickness.²

Average visibility comparison²

(Higher is better)

Orange and gray bar chart comparing visibility of Resolute Onyx drug-eluting stent to Synergy, Xience, and Orsiro DES.

Cobalt alloy shell
Platinum iridium core

Close-up of the Resolute Onyx cobalt alloy shell and platinum-iridium core

Resolute Onyx cobalt alloy shell and platinum-iridum core

Smooth side branch access

Resolute Onyx DES has round struts to create a smooth passage when accessing the side branch and lower the propensity to catch during bifurcation procedures.²

Strut comparison

Rounded strut cross-section

Resolute Onyx DES

Illustration of Resolute Onyx DES rounded struts

Square strut cross-section

SYNERGY™* DES
XIENCE™* DES

Illustration of square struts used by competitive coronary stents

Broadest diameter range

Complex PCI requires a broad DES size matrix to match a wide range of patient anatomies.
Resolute Onyx is the only DES with diameters ranging from 2.0 mm to 5.0 mm to treat a broad range of coronary vessel sizes.

Columns

*Diameter (mm)*	*Stent Length (mm)*									*Maximum Expansion* *Capabilities (MSID^†) (mm)*
*2.00*	8	12	15	18	22	26	30	—	—	*3.50^‡*
*2.25*	8	12	15	18	22	26	30	34	38	*3.50^‡*
*2.50*	8	12	15	18	22	26	30	34	38	*3.50^‡*
*2.75*	8	12	15	18	22	26	30	34	38	*4.00^‡*
*3.00*	8	12	15	18	22	26	30	34	38	*4.00^‡*
*3.50*	8	12	15	18	22	26	30	34	38	*5.00^‡*
*4.00*	8	12	15	18	22	26	30	34	38	*5.00^‡*
*4.50*	—	12	15	18	22	26	30	—	—	*6.00^‡*
*5.00*	—	12	15	18	22	26	30	—	—	*6.00^‡*

PRODUCT DETAILS



*2.00*	*RONYX20008X*	*RONYX20012X*	*RONYX20015X*	*RONYX20018X*	*RONYX20022X*	*RONYX20026X*	*RONYX20030X*	*N/A*	*N/A*
*2.25*	*RONYX22508X*	*RONYX22512X*	*RONYX22515X*	*RONYX22518X*	*RONYX22522X*	*RONYX22526X*	*RONYX22530X*	*RONYX22534X*	*RONYX22538X*
*2.50*	*RONYX25008X*	*RONYX25012X*	*RONYX25015X*	*RONYX25018X*	*RONYX25022X*	*RONYX25026X*	*RONYX25030X*	*RONYX25034X*	*RONYX25038X*
*2.75*	*RONYX27508X*	*RONYX27512X*	*RONYX27515X*	*RONYX27518X*	*RONYX27522X*	*RONYX27526X*	*RONYX27530X*	*RONYX27534X*	*RONYX27538X*
*3.00*	*RONYX30008X*	*RONYX30012X*	*RONYX30015X*	*RONYX30018X*	*RONYX30022X*	*RONYX30026X*	*RONYX30030X*	*RONYX30034X*	*RONYX30038X*
*3.50*	*RONYX35008X*	*RONYX35012X*	*RONYX35015X*	*RONYX35015X*	*RONYX35022X*	*RONYX35026X*	*RONYX35030X*	*RONYX35034X*	*RONYX35038X*
*4.00*	*RONYX40008X*	*RONYX40012X*	*RONYX40015X*	*RONYX40018X*	*RONYX40022X*	*RONYX40026X*	*RONYX40030X*	*RONYX40034X*	*RONYX40038X*
*4.50*	*N/A*	*RONYX45012X*	*RONYX45015X*	*RONYX45018X*	*RONYX45022X*	*RONYX45026X*	*RONYX45030X*	*N/A*	*N/A*
*5.00*	*N/A*	*RONYX50012X*	*RONYX50015X*	*RONYX50018X*	*RONYX50022X*	*RONYX50026X*	*RONYX5*

Rated 1.00 out of 5

wishlist

Sprinter OTW Balloon
Sprinter OTW Semicompliant

Balloon Dilatation Catheter

Sprinter™ over-the-wire semicompliant balloon offers low-tip and crossing profiles with a comprehensive size matrix

OVERVIEW

The Sprinter™ over-the-wire (OTW) semicompliant balloon dilatation catheter is available in a broad size matrix.

FEATURES

MiniWrap folding is used on 1.50-4.00 balloons. The 1.50 mm balloon has two folds.

Selective Dura-Trac coating

2.5 mm tip

FasTrac tip

Balloon’s

Distal shaft

Gold-swaged marker bands

Selective Dura-Trac hydrophilic coating

Fulcrum balloon material

Proximal shaft (oval)

FasTrac tip

wishlist

RADIFOCUS INTRODUCER SHEATH

Radifocus™ Introducer II Standard Kit A

Introducer Sheath (FEMORAL)

Kit of vascular introducer with hemostatic valve with excellent blood tightness,
easy and non traumatic vessel insertion, patented valve design for a unique
features package.

Total Integrated Fit (TIF) tip tapering: tapering design at the tip of the sheath and dilator to facilitate smooth penetration
Cross-cut hemostasis valve to avoid blood reflux and air aspiration
Thin radiopaque sheath with anti-kinking sleeve for easy catheter handling
Snap-on/click-off dilator lock prevents dilator back-out during insertion and allows one-hand unlocking
Wide variety of kit variations providing all elements for quick vessel access: 4-11 Fr sheaths, 5-16 cm lengths, Surf lash needle

General specifications

Sheath length	10 cm
Mini guidewire	Plastic Straight and Angled 0.025″ (0.64 mm) for 4 Fr, straight mini guidewire type; 0.035″ (0.89 mm) for all others 45 cm
Entry needle	Plastic IV Catheter – 18G x 2 ½” (1.2 x 64 mm), except for 4 Fr with 45 cm straight mini guidewire: 20G x 2″ (0.9 x 51 mm) 2.5 ml syringe is included
Guidewire compatibility	0.025″ (0.64 mm) for 4 Fr, straight mini guidewire type 0.035″ (0.89 mm) for all others
Packaging	Tray
A Kit content	Sheath, dilator, plastic mini guidewire and plastic IV catheter (entry needle)

Inner diameter	Mini guidewire type
Inner diameter	45 cm angled	45 cm straight
4 Fr	RS+A40K10AQ	RS+A40G10SQ
4 Fr	RS*A40G10SQ	RS*A40G05SQ
4 Fr	RS*A40K10SQ	RS*A40G07SQ
5 Fr	RS*A50K10AQ	RS*A50G07SQ
5 Fr	RS+A50K10AQ	RS+A50K10SQ
6 Fr	RS+A60K10AQ	RS+A60K10SQ
6 Fr	RS*A60K10AQ	RS*A60G07SQ
6 Fr	—	RS*A60G16SQZ
6 Fr	—	RS*A60K10SQ
6 Fr	—	RS+A50K10SQ
7 Fr	—	RS+A70K10SQ
7 Fr	—	RS*A70G07SQ
7 Fr	—	RS*A70K10SQ
8 Fr	—	RS+A80K10SQ
8 Fr	—	RS*A80K10SQ
9 Fr	—	RS*A90K10SQ
10 Fr	—	RS*A10K10SQ
11 Fr	—	RS*A11K10SQ

A Kit includes: introducer sheath, dilator, mini Guide wire, entry venous catheter, 2.5 cc syringe
B Kit includes: introducer sheath, dilator, mini Guide wire
C Kit includes: introducer sheath, dilator
R Kit includes: introducer sheath, dilator, mini Guide wire, 18 G x 2 3/4” / 1.2 x 70 mm entry metallic needle
Other code numbers are available on special demand. For any further information, please contact your Terumo local representative
Units per box: 5 for kits in tray and 10 for kits in pouch.

wishlist

SPRINTER LEGEND PTCA BALLOON

SPRINTER LEGEND 1.25 BALLOON CATHETER

Super Crosser Semi compliant Balloon Dilatation Catheter (RX/OTW)

Sprinter™ Legend™ 1.25 SuperCrosser semicompliant balloon dilatation catheter delivers exceptional crossability to treat today’s challenging lesions.

With innovative crossing technologies and 57 sizes, the Sprinter™ Legend™ RX semicompliant balloon dilatation catheter provides you with the power to cross.

OVERVIEW

During difficult cases, reach for a slim Sprinter™ Legend™ 1.25 mm Super Crosser semi compliant coronary balloon catheter featuring:

Award-winning* Zerofold technology — no wrapped material and no balloon shoulders
Low 0.5 mm (0.020 in) crossing profile
OTW and RX platforms

ORDERING INFORMATION

BALLOON LENGTHS 6, 10, 12, AND 15 MM



1.25	SPL12506WL	SPL12510WL	SPL12515WL	SPL12520WL

Sprinter Legend RX Semi compliant

Balloon Dilatation Catheter

OVERVIEW

Performance You Can Trust

Sprinter™ Legend™ semicompliant balloons help you cross, open, and treat lesions during challenging percutaneous coronary interventions (PCIs), and feature:

Some of the industry’s lowest crossing profiles¹
Innovative crossing technology
A broad range of sizes

ORDERING INFORMATION

BALLOON LENGTHS 6, 10, 12, AND 15 MM

Balloon Diameter (mm)
Balloon Diameter (mm)
1.25	SPL12506X	SPL12510X	SPL12512X	SPL12515X
1.50	SPL15006X	SPL15010X	SPL15012X	SPL15015X
2.00	SPL20006X	SPL20010X	SPL20012X	SPL20015X
2.25	SPL22506X	SPL22510X	SPL22512X	SPL22515X
2.50	SPL25006X	SPL25010X	SPL25012X	SPL25015X
2.75	SPL27506X	—	SPL27512X	SPL27515X
3.00	SPL30006X	SPL30010X	SPL30012X	SPL30015X
3.25	—	—	SPL32512X	SPL32515X
3.50	SPL35006X	SPL35010X	SPL35012X	SPL35015X
3.75	—	—	SPL37512X	SPL37515X
4.00	SPL40006X	SPL40010X	SPL40012X	SPL40015X

BALLOON LENGTHS 20, 25, AND 30 MM

Balloon Diameter (mm)
Balloon Diameter (mm)
1.25	SPL12520X	—	—
1.50	SPL15020X	—	—
2.00	SPL20020X	SPL20025X	SPL20030X
2.25	SPL22520X	SPL22525X	—
2.50	SPL25020X	SPL25025X	SPL25030X
2.75	SPL27520X	SPL27525X	—
3.00	SPL30020X	SPL30025X	SPL30030X
3.25	SPL32520X	—	—
3.50	SPL35020X	SPL35025X	SPL35030X
3.75	SPL37520X	—	—
4.00	SPL40020X	SPL40025X	SPL40030X
