SWAN-GANZ

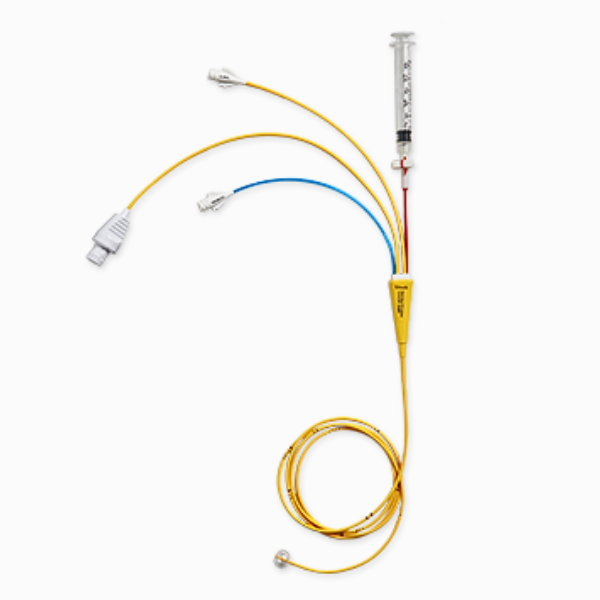

SWAN-GANZ CATHETER
The FastCCO algorithm fuses the trusted performance of continuous thermodilution with the rapid response of arterial pressure-based cardiac output (APCO) to deliver CO and SV status every 20 seconds. Providing quicker flow insights than continuous thermodilution, the FastCCO algorithm enables faster feedback for more efficient clinical decision-making.
Continuous view of cardiac function in your most complex patients
The first flow-directed Swan-Ganz pulmonary artery catheter revolutionized haemodynamic monitoring in critically ill patients.1 By providing a comprehensive haemodynamic profile, utilising continuous data, Swan-Ganz pulmonary artery catheters track your patient’s haemodynamic status to assist your early evaluation.
The Swan-Ganz catheter, now with the FastCCO algorithm, enables CO and SV parameters every 20 seconds.
Target complex patient conditions with advanced haemodynamic parameters
The Swan-Ganz catheter with FastCCO algorithm allows continuous monitoring of the balance of oxygen delivery and consumption with these advanced haemodynamic parameters:
- Stroke volume (now SV20s with FastCCO algorithm)
- Cardiac output (now CO20s with FastCCO algorithm)
- Mixed venous oxygen saturation (SvO2)
- Systemic vascular resistance (SVR)
- Right ventricular ejection fraction (RVEF)
- Right ventricular end diastolic volume (RVEDV)
- Pulmonary artery pressure (PAP)
- Pulmonary artery occlusion pressure (PAOP)*
SvO2Â mixed venous oxygen saturation
Swan-Ganz pulmonary artery catheters provide continuous monitoring of SvO2. Since SvO2 is a sensitive indicator of the patient’s status and generally precedes other indications of cardiopulmonary instability, continuous SvO2 monitoring may allow diagnostic and therapeutic decisions to be made earlier in the patient’s clinical course.
Trusted performance, faster response
Swan-Ganz pulmonary artery catheters provide flow, pressure, and oxygen delivery and consumption parameters. With the FastCCO algorithm, CO and SV update every 20 seconds, giving you a faster, uninterrupted view of cardiac function for more proactive decision support in your most complex patients.
70% faster than current Swan-Ganz pulmonary artery catheter technologies
Fusing the trusted performance of continuous thermodilution with the rapid response of arterial pressure-based cardiac output (APCO), the FastCCO algorithm delivers continuous flow insights that enable you to quickly respond to transient changes in CO.
For cardiac surgical patients, the FastCCO algorithm can deliver cardiac output values quickly upon coming off of bypass during on-pump procedures.
Individualised fluid management
The FastCCO algorithm’s flow parameter readings every 20 seconds enable continuous observation of patient responses to fluid challenges and passive leg raise tests, and allow faster optimisation of fluid management.
The fluid responsiveness test screen on the HemoSphere advanced monitoring platform allows you to quickly assess preload responsiveness by tracking changes in SV, SVI, CO or CI in response to a fluid challenge.
Comprehensive haemodynamic management
FastCCO algorithm is part of the latest software on HemoSphere advanced monitoring platform.
Also available for the modular HemoSphere platform is ForeSight tissue oximetry system, which continuously monitors oxygen saturation, noninvasively. The HemoSphere platform gives you a comprehensive view of tissue oximetry and advanced haemodynamics on one monitor so you can ensure your patient is adequately perfused.
Advanced technology catheter model numbers
| Model | Description | Size (F) | CO20s | SV20s | CCO | SvO2 | SV | SVR | RVEF | RVEDV | VIP port |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 774F75 | CCOmbo RVEDV (CCO + SvO2Â + RVEDV) | 7.5 | X | X | X | X | X | X | X | X | |
| 777F8 | CCOmbo RVEDV/VIP (CCO + SvO2Â + RVEDV + VIP lumen) | 8 | X | X | X | X | X | X | X | X | X |
Thermodilution pulmonary artery catheters
The thermodilution catheters monitor intracardiac pressures, cardiac output, and provide infusing solutions.
When used with a compatible monitor, the following parameters are available through the thermodilution catheters: ICO, PAPs, PAOP
Assesses haemodynamic condition through direct intracardiac and pulmonary artery pressure monitoring, cardiac output determination and for infusing solutionsâ€
The distal (pulmonary artery) port also allows sampling of mixed venous blood for the assessment of oxygen transport balance and the calculation of derived parameters such as oxygen consumption, oxygen utilization coefficient, and intrapulmonary shunt fraction
The Swan-Ganz VIP catheters have an extra lumen with proximal port (30 cm) for infusion in addition to the standard distal and injectate lumens to provide direct access to the right atrium
The Swan-Ganz VIP+ catheter has a right ventricular lumen that terminates 19 cm from the catheter tip and the right atrial lumen at 31 cm
Model numbers
| Model | Description | Size (F) | Length (cm) |
|---|---|---|---|
| Â 132F5Â | Four Lumen Catheter | 5 | 78 |
| 096F6PÂ Â | Four Lumen Catheter | 6 | 110 |
| Â Â 131F7Â | Standard Four Lumen Catheter | 7 | 110 |
Flow-directed monitoring catheters
The following parameters are available through the flow-directed monitoring catheters†: Pulmonary Artery Pressure (PAP), Pulmonary Artery Occlusion Pressure (PAOP)*.
The flow-directed monitoring catheters monitor right heart pressures and enable mixed venous blood sampling as well as infusing solutions.
Model numbers
| Model | Description | Size (F) | Length (cm) |
|---|---|---|---|
| Â 110F5Â | Double Lumen Monitoring | 5 | 110 |
| 111F7P | Double Lumen Monitoring | 7 | 110 |
| 123F6P | Double Lumen Monitoring | 6 | 110 |
| 114F7P | Triple Lumen Monitoring | 7 | 110 |
Bipolar pacing catheters
Bipolar pacing catheters are designed for temporary right ventricular endocardial pacing.‡
- Balloon tip facilitates insertion by flow-direction
- A pair of electrodes at the tip provide capabilities for bipolar pacing
- “J”- tip configuration is available for femoral insertion to predispose the catheter to a stable pacing position in the apex of the right ventricle
Model numbers
| Model | Description | Size (F) | Length (cm) |
|---|---|---|---|
| D97120F5 | SVC Insertion, Catheter Only | 5 | 90 |
| D97130F5 | Femoral Insertion, Catheter Only, J-Tip | 5 | 90 |
Â
Thermodilution paceport catheter
The A-V Paceport or Pacing-TD catheters offer atrial, ventricular, or A-V sequential temporary transvenous pacing in the right heart.§
- The Thermodilution paceport catheter offers temporary transvenous right ventricular pacing‡ when used with the appropriate Edwards Chandler Transluminal V pacing probes
- The Thermodilution A-V paceport catheter is indicated for temporary transvenous right ventricular, atrial, or A-V sequential pacing‡ when used with the appropriate Edwards Chandler Transluminal A and/or V pacing probes
- Swan-Ganz oximetry paceport TD catheters offer bolus cardiac output and SvO2Â monitoring when used with a compatible monitor in addition to temporary transvenous pacing when used with the appropriate Edwards Chandler Transluminal V pacing probe
Model numbers
| Model | Paceport Catheters and Chandler Probes | Size (F) | Length (cm) |
|---|---|---|---|
| 931F75 | Paceport 5 Lumen TD Catheter | 7.5 | 110 |
Pacing-TD catheters
The A-V Paceport or Pacing-TD catheters offer atrial, ventricular, or A-V sequential temporary transvenous pacing in the right heart.§
- Three atrial and two ventricular electrodes for atrial and ventricular pacing and atrioventricular (A-V) sequential pacing are integrated into the pulmonary artery catheter for temporary transvenous pacing‡
- Pacing-TD catheter can measure right heart pressures, blood sampling, solution infusion, and cardiac output measurements by thermodilution when used with a compatible monitoring platform
Model numbers
| Model | Swan-Ganz Pacing Catheters | Size (F) | Length (cm) |
|---|---|---|---|
| D200F7Â | Pacing-TD Catheter | 7 | 110 |
