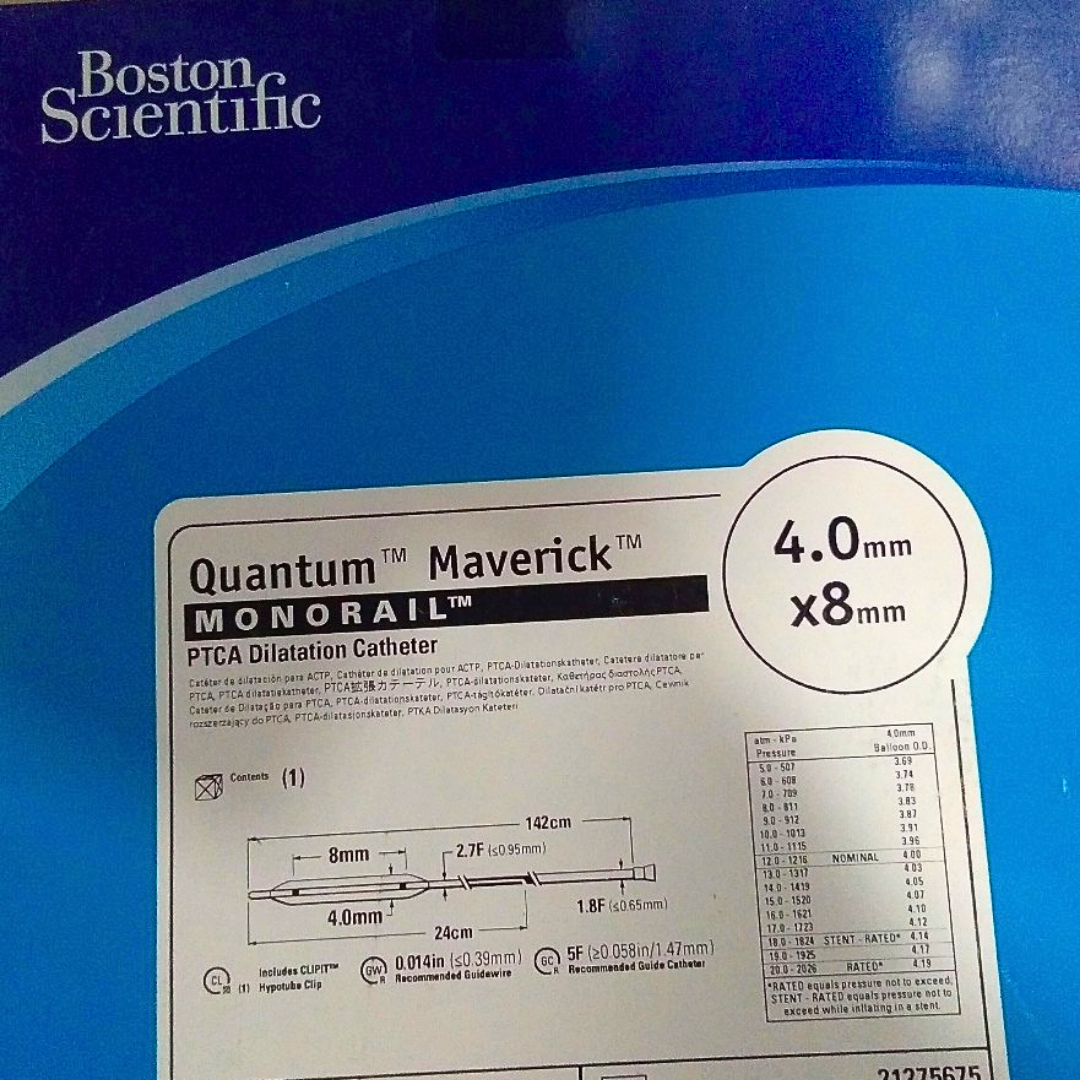

QUANTUM MEVERICK BALLOON CATHETER

Related products

•

  Rated 4.00 out of 5

  wishlist

  PTCA Balloon Ryurei

  Description

  Confidence in your hands

  Ryurei™ has superior crossability¹ thanks to the combination of low distal profiles and Terumo’s hydrophilic M coating. The short balloon bonding and reinforced shaft¹ results in enhanced trackability¹ while maintaining excellent pushability¹.

  These features can increase physician’s confidence in success even during complex procedures.

  Characteristics

  Excellent Pusability

  The combination of flexible distal part,  tapered core wire on the midshaft and the thick proximal hypotube, results in smooth and balanced transition across the entire catheter for high transmission force, resulting in excellent pushability

  Superior Crossability²

  Thanks to the combination of distal  low profiles and the Terumo hydrophilic M-Coat, Ryurei offers low friction in crossing tight lesions

  Enhanced Trackability²

  With an optimal tip design and improved balloon bonding, Ryurei provides enhanced trackability, even in tortuous anatomy and difficult to navigate vessels.





  General specifications

  ​Shaft diameter	​1.9 Fr/0.64 mm Proximal • 2.5 Fr/0.84 mm Middle • 2.4 Fr/0.79 mm to 2.7 Fr/0.89 mm (tapered) Distal (1.00 to 1.50 mm) • 2.6 Fr/0.87 mm Distal (2.00 to 4.00 mm)
  ​Usable length	​145 cm
  ​Balloon markers #	​1(Ø1.0 to Ø 1.5 mm) • 2(Ø2.0 to Ø4.0 mm)
  ​Nominal pressure	​6 atm / 608 kPa
  ​Rated burst pressure	Ø1.0 – 3.0 mm=14 atm(1419kPa) • Ø3.25 – 4.0 mm = 12 atm(1216 kPa)
  ​Guidewire compatibility	​Maximum diameter: 0.014″ / 0.36 mm
  ​Lesion entry profile	​0.41 mm (Ø1.00 to Ø1.50 mm) • 0.43 mm (Ø2.00 to Ø4.00 mm)
  ​Coating	​Hydrophilic

  Item specifications

  Balloon length / Product code​ ​ ​ ​ ​ ​ ​
  Balloon Diameter	5 mm	10 mm	15 mm	20 mm	30 mm	40 mm
  1.00 mm	DC-RR1005HH
  ​1.25 mm	​DC-RR1205HH	​​DC-RR1210HH	​​DC-RR1215HH	​​DC-RR1220HH	​	​
  1.50 mm	DC-RR1505HH	DC-RR1510HH	DC-RR1515HH	DC-RR1520HH
  2.00 mm		DC-RR2010HHW	DC-RR2015HHW	DC-RR2020HHW	DC-RR2030HHW	DC-RR2040HHW
  2.25 mm		DC-RR2210HHW	DC-RR2215HHW	DC-RR2220HHW
  2.50 mm		DC-RR2510HHW	DC-RR2515HHW	DC-RR2520HHW	DC-RR2530HHW	DC-RR2540HHW
  2.75 mm		DCRR2710HHW	DC-RR2715HHW	DC-RR2720HHW
  3.00 mm		DC-RR3010HHW	DC-RR3015HHW	DC-RR3020HHW	DC-RR3030HHW	DC-RR3040HHW
  3.25 mm		DC-RR3210HHW	DC-RR3215HHW	DC-RR3220HHW
  3.50 mm		DC-RR3510HHW	DC-RR3515HHW	DC-RR3520HHW	DC-RR3530HHW	DC-RR3540HHW
  3.75 mm		DC-RR3710HHW	DC-RR3715HHW	DC-RR3720HHW
  4.00 mm		DC-RR4010HHW	DC-RR4015HHW	DC-RR4020HHW

  References

  ¹ Ryurei φ1.00-5mm compared to Tazuna 1.25-10 mm- Data on file ISCD-416-31-4
  * For Ryurei Ø 1.00 mm – Ø 1.50 mm.
  ** For Ryurei Ø 1.00mm – 5mm ​



  ² Compared to Tazuna PTCA dilatation catheter

•

  wishlist

  Launcher- 6f Guiding Catheter’s

  EBU@ (Extra Backup)

  LA6EBU30 (EBU 3.0)

  LA6EBU35 (EBU 3.5)

  LA6EBU375 (EBU 3.75)

  LA6EBU40 (EBU 4.0)

  LA6EBU45 (EBU 4.5)

  LA6EBU50 (EBU 5.0)

  JL@ (Judkin Left )

  LA6JL30 (JL 3.0)

  LA6JL35 (JL 3.5)

  LA6JL40 (JL 4.0)

  LA6JL45 (JL 4.5)

  LA6JL50 (JL 5.0)

  LA6JL60 (JL 6.0)

  JR@ (Judkin Right )

  LA6JR30 (JR 3.0)

  LA6JR35 (JR 3.5)

  LA6JR40 (JR 4.0)

  LA6JR45 (JR 4.5)

  LA6JR50 (JR 5.0)

  LA6JR60 (JR 6.0)

  AL@ (Amplatz Left )

  LA6AL75 (AL .75)

  LA6AL10 (AL 1.0)

  LA6AL15 (AL 1.5)

  LA6AL20 (AL 2.0)

  LA6AL25 (AL 2.5)

  LA6AL30 (AL 3.0)

  LA6AL40 (AL 4.0)

  SAL@ (Short Amplatz Left)

  LA6SAL75 (SAL . 75)

  LA6SAL10 (SAL 1.0)

  LA6SAL15 (SAL 1.5)

  LA6SAL20 (SAL 2.0)

  LA6SAL25 (SAL 2.5)

  LA6SAL30 (SAL 3.0)

  LA6SAL40 (SAL 4.0)

  AR@ (Amplatz Right)

  LA6AR10 (AR 1.0)

  LA6AR20 (AR 2.0)

  LA6ALR12 (ALR 1.2)

  ECR Curves@ (Backup Support Right)

  LA6ECR35 (ECR 3.5)

  LA6ECR40 (ECR 4.0)

  LA6ECR45 (ECR 4.5)

  LA6RBU35 (RBU 3.5)

  LA6RBU40 (RBU 4.0)

  SCR@ (Shepherd’s Crook Right)

  LA6SCR35 (SCR 3.5)

  LA6SCR40 (SCR 4.0)

  LA6SCR50 (SCR 5.0)

  SAR@ (Short Amplatz Right)

  LA6SAR10 (SAR 1.0)

  LA6SAR20 (SAR 2.0)

  Multipurpose@

  LA6MB1 (MB 1)

  LA6MB2 (MB 2)

  LA6HSREL (Hockey Stick)

  LA6HSI (Hockey I)

  LA6HSII (Hockey II)

  LA6HSIII (Hockey III)

  Bypass Crafts@

  LA6LCB (LCB)

  LA6RCB (RCB)

  LA6RCB (RCB III)

  LA6RCB (RCB  90cm)

  LA6IMA (IMA)

  LA6IMA (IMA  90cm)

•

  wishlist

  PTCA BALLOON ACCUFORCE

  Description

  Force. Success. No Compromise.

  The great balance between high pressure and high resistance, accurate dilatation and advanced deliverability. Accuforce is the latest generation of non-compliant PTCA balloons.

  Characteristics

  • ​Provides impressive high-pressure resistance up to 22 atm
  • Optimizes (re)crossability and deliverability¹
  • Operates accurately in pre- and post-dilatation

  General specifications

  Shaft diameter	1.9 Fr / 0.64 mm Proximal 2.5 Fr / 0.84 mm Mid 2.6 Fr / 0.86 mm Distal
  Usable length	145 cm
  Balloon markers	2
  Nominal pressure	12 atm / 1216 kPa
  Rated burst pressure	22 atm / 2229 kPa (2.0 mm to 4.0 mm) 20 atm / 2026 kPa (4.5 and 5.0 mm)
  Guidewire compatibility	Maximum diameter 0.014″ / 0.36 mm
  Lesion entry profile	0.43 mm
  Coating	Hydrophilic

  Item specifications

  Ordering Information

  Balloon diameter (mm) ​	Balloon length (mm) / Item references  ​ ​ ​ ​ ​ ​
  	6	8	12	15	20	25	30
  2.00	DC-RM2006HSW	DC-RM2008HSW	DC-RM2012HHW	DC-RM2015HHW	DC-RM2020HHW	—	—
  2.25	DC-RM2206HSW	DC-RM2208HSW	DC-RM2212HHW	DC-RM2215HHW	DC-RM2220HHW	—	—
  2.50	DC-RM2506HSW	DC-RM2508HSW	DC-RM2512HHW	DC-RM2515HHW	DC-RM2520HHW	DC-RM2525HHW	DC-RM2530HHW
  2.75	DC-RM2706HSW	DC-RM2708HSW	DC-RM2712HHW	DC-RM2715HHW	DC-RM2720HHW	—	—
  3.00	DC-RM3006HSW	DC-RM3008HSW	DC-RM3012HHW	DC-RM3015HHW	DC-RM3020HHW	DC-RM3025HHW	DC-RM3030HHW
  3.25	DC-RM3206HSW	DC-RM3208HSW	DC-RM3212HHW	DC-RM3215HHW	DC-RM3220HHW	—	—
  3.50	DC-RM3506HSW	DC-RM3508HSW	DC-RM3512HHW	DC-RM3515HHW	DC-RM3520HHW	DC-RM3525HHW	DC-RM3530HHW
  3.75	DC-RM3706HSW	DC-RM3708HSW	DC-RM3712HHW	DC-RM3715HHW	DC-RM3720HHW	—	—
  4.00	DC-RM4006HSW	DC-RM4008HSW	DC-RM4012HHW	DC-RM4015HHW	DC-RM4020HHW	—	—
  4.50	DC-RM4506HSW	DC-RM4508HSW	DC-RM4512HSW	DC-RM4515HSW	—	—	—
  5.00	DC-RM5006HSW	DC-RM5008HSW	DC-RM5012HSW	DC-RM5015HSW	—	—	—

  Enlarge table

  Please quote above item reference codes when placing an order.

  Balloon Compliance

  Balloon diameter (mm) ​	Pressure (atm) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
  	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25
  2.00	1.58	1.65	1.72	1.79	1.84	1.88	1.92	1.95	1.98	2.00*	2.01	2.03	2.04	2.05	2.06	2.08	2.09	2.10	2.12	2.13**	2.14	2.15	2.17
  2.25	1.96	2.01	2.06	2.11	2.14	2.16	2.19	2.21	2.23	2.25*	2.26	2.28	2.29	2.31	2.32	2.34	2.35	2.36	2.38	2.39**	2.41	2.42	2.44
  2.50	2.19	2.24	2.30	2.36	2.38	2.41	2.44	2.46	2.48	2.50*	2.52	2.53	2.55	2.56	2.58	2.60	2.61	2.63	2.64	2.66**	2.68	2.69	2.71
  2.75	2.43	2.48	2.53	2.59	2.62	2.65	2.67	2.70	2.73	2.75*	2.77	2.79	2.80	2.82	2.84	2.86	2.87	2.89	2.91	2.93**	2.94	2.96	2.98
  3.00	2.65	2.71	2.76	2.82	2.85	2.89	2.92	2.95	2.97	3.00*	3.02	3.04	3.06	3.08	3.10	3.11	3.13	3.15	3.17	3.19**	3.21	3.23	3.25
  3.25	2.89	2.95	3.01	3.07	3.10	3.14	3.17	3.20	3.22	3.25*	3.27	3.29	3.31	3.33	3.35	3.37	3.39	3.42	3.44	3.46**	3.47	3.48	3.51
  3.50	3.13	3.19	3.26	3.32	3.35	3.39	3.42	3.45	3.47	3.50*	3.52	3.54	3.57	3.59	3.61	3.63	3.65	3.68	3.70	3.72**	3.74	3.74	3.76
  3.75	3.37	3.44	3.50	3.56	3.60	3.63	3.66	3.69	3.72	3.75*	3.77	3.80	3.82	3.84	3.86	3.88	3.90	3.92	3.94	3.96**	3.98	3.99	4.01
  4.00	3.58	3.65	3.72	3.79	3.83	3.87	3.90	3.94	3.97	4.00*	4.03	4.05	4.07	4.09	4.11	4.13	4.15	4.17	4.19	4.21**	4.23	4.26	4.28
  4.50	4.02	4.10	4.19	4.28	4.32	4.37	4.40	4.44	4.47	4.50*	4.53	4.56	4.59	4.63	4.66	4.68	4.71	4.75**	4.78	4.81	4.84	4.87	4.91
  5.00	4.52	4.59	4.67	4.75	4.80	4.85	4.89	4.93	4.96	5.00*	5.03	5.07	5.10	5.13	5.16	5.19	5.22	5.26**	5.29	5.32	5.35	5.38	5.41

  Enlarge table

  * Nominal pressure
  ** Rated burst pressure

  References

  ^​​1 Compared with Hiryu. Non-Compliant PTCA Balloon Catheter manufactured by Terumo Corporation.

  Ordering Information. Balloon diameter (mm) ​, Balloon length (mm) / Item references ​ ​ ​ ​ ​ ​.

  Balloon markers: 2

  Usable length: 145 cm

  Coating: Hydrophilic

  Lesion entry profile: 0.43 mm

  Straight-Single Latex Plastic Terumo Accuforce Balloon Catheter, Size: Medium ; Application, Hospital ; Brand, Terumo ; Material, Latex ; Inner Diameter, 36mm.
•

  wishlist

  RADIFOCUS REDIAL SHEATH

  Providing you the best range of Terumo Radifocus Radial Introducer Sheath and Cordis Femoral Introducer Sheath with effective & timely delivery.

  The radial artery access sheath is used to gain arterial access and facilitate the insertion of catheters or other equipment for diagnostic and vascular interventions.

  • The Cordis AVANTI®+ Introducer is the pioneer of catheter sheath introducer technology. Featuring a patented SLIX Valve, the AVANTI®+ introducer provides smooth transitions, monitoring capabilities and exceptional performance for your procedural success, as well as
  • A hexacuspid design that provides a balance between catheter maneuverability and hemostasis.
  • A rotating suture collar that facilitates procedural flexibility. It stays in place and allows patient movement.
  • A kink-resistant cannula design integrating a soft, flexible inner layer with a stiffer outer layer designed to increase bendability and support, and decrease kinking.
  • Atraumatic tip transitions for both the sheath and the vessel dilator are uniquely tapered and manicured. This results in smooth insertions and helps to minimize damage upon entry.

  As part of the circulatory system, the radial artery supplies blood from the heart to the forearm.

  Radial sheaths had the smallest OD (1 Fr smaller) when compared to similar sized conventional sheaths. For instance, the OD of 4 Fr radial sheath (1.610 ± 0.006 mm) is essentially the same as the OD of the conventional 3 Fr (1.644 ± 0.016 mm) and 3.3 Fr (1.635 ± 0.005 mm) sheaths.
