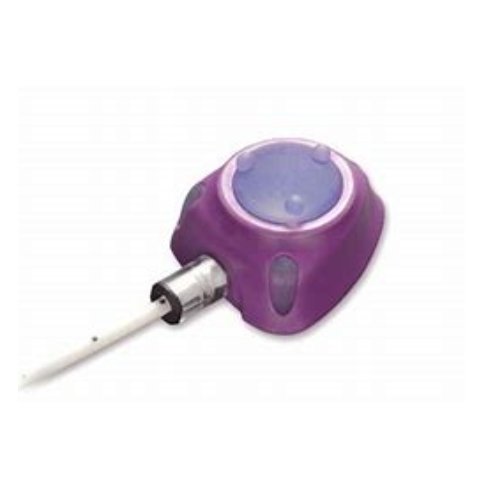

PPrt,MRI isp8Gs,int w/spa

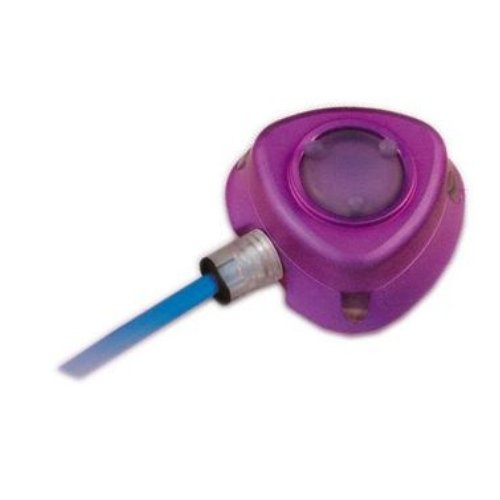

PPrt,MRI isp8Gs,int w/spa - Image 2

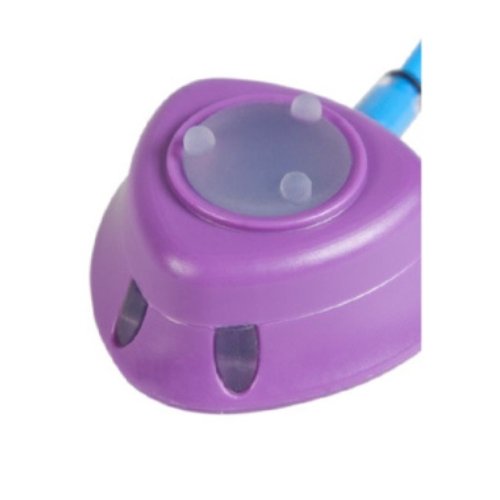

PPrt,MRI isp8Gs,int w/spa - Image 3

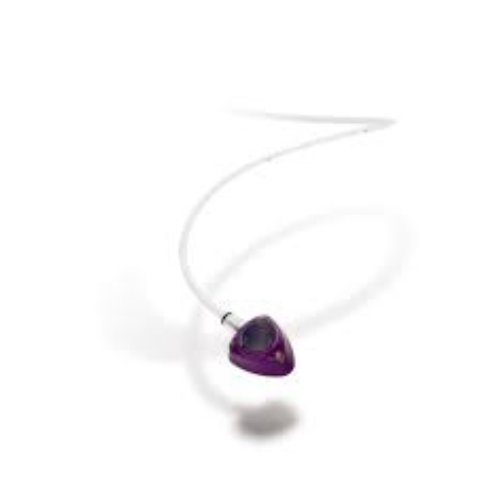

PPrt,MRI isp8Gs,int w/spa - Image 4

PPrt,MRI isp8Gs,int w/spa

Cosmetically appealing with compact size Lightweight for patient comfort Radio-translucent Reduced artifact Enables superior imaging Easily identifiable Power injectable Plastic port body

AVAILABAL  SIZE-

8806060 PPrt MRI isp,6CF,Intwsp,
8808060 Pprt, MRIisp, 8Cf intw/sp
Add to wishlist

PPrt,MRI isp8Gs,int w/spa

Reviews

There are no reviews yet.

Be the first to review “PPrt,MRI isp8Gs,int w/spa”

Your email address will not be published. Required fields are marked *

Category:

Related products

  • wishlist

    NC Sprinter PTCA BALLOON

    NC Sprinter RX Noncompliant

    NC Stormer over-the-wire noncompliant balloon dilatation catheter offers controlled compliance, high pressures, and comprehensive lengths.

    Balloon Dilatation Catheter

    OVERVIEW

    The NC Sprinterâ„¢ RX noncompliant coronary balloon combines:

    • Sprinter crossing technology
    • High-pressure capability and controlled expansion1

    ORDERING INFORMATION

    BALLOON LENGTHS 6, 9, 12 MM

    Balloon

    Diameter (mm)

    		 Balloon Length (mm)
    6 9 12
    2.00 NCSP2006X NCSP2009X NCSP2012X
    2.25 NCSP22506X — NCSP22512X
    2.50 NCSP2506X NCSP2509X NCSP2512X
    2.75 NCSP27506X NCSP27509X NCSP27512X
    3.00 NCSP3006X NCSP3009X NCSP3012X
    3.25 NCSP32506X NCSP32509X NCSP32512X
    3.50 NCSP3506X NCSP3509X NCSP3512X
    3.75 NCSP37506X NCSP37509X NCSP37512X
    4.00 NCSP4006X NCSP4009X NCSP4012X
    4.50 — — —
    5.00 — — —

    BALLOON LENGTHS 15, 21, 27 MM

    Balloon

    Diameter (mm)

    		 Balloon Length (mm)
    15 21 27
    2.00 NCSP2015X NCSP2021X —
    2.25 — NCSP22521X —
    2.50 NCSP2515X NCSP2521X NCSP2527X
    2.75 NCSP27515X NCSP27521X —
    3.00 NCSP3015X NCSP3021X NCSP3027X
    3.25 NCSP32515X NCSP32521X —
    3.50 NCSP3515X NCSP3521X NCSP3527X
    3.75 NCSP37515X NCSP37521X —
    4.00 NCSP4015X NCSP4021X NCSP4027X
    4.50 NCSP4515X NCSP4521X —
    5.00 NCSP5015X — —
  • wishlist

    PTCA BALLOON ACCUFORCE

    Description

    Force. Success. No Compromise.

    The great balance between high pressure and high resistance, accurate dilatation and advanced deliverability. Accuforce is the latest generation of non-compliant PTCA balloons.

    Characteristics

    • ​Provides impressive high-pressure resistance up to 22 atm
    • Optimizes (re)crossability and deliverability1
    • Operates accurately in pre- and post-dilatation

    General specifications

    Shaft diameter 1.9 Fr / 0.64 mm Proximal
    2.5 Fr / 0.84 mm Mid
    2.6 Fr / 0.86 mm Distal
    Usable length 145 cm
    Balloon markers 2
    Nominal pressure 12 atm / 1216 kPa
    Rated burst pressure 22 atm / 2229 kPa (2.0 mm to 4.0 mm)
    20 atm / 2026 kPa (4.5 and 5.0 mm)
    Guidewire compatibility Maximum diameter 0.014″ / 0.36 mm
    Lesion entry profile 0.43 mm
    Coating Hydrophilic

    Item specifications

    Ordering Information

    Balloon
    diameter
    (mm) ​    		 Balloon length (mm) / Item references  ​ ​ ​ ​ ​ ​
    6 8 12 15 20 25 30
    2.00 DC-RM2006HSW DC-RM2008HSW DC-RM2012HHW DC-RM2015HHW DC-RM2020HHW — —
    2.25 DC-RM2206HSW DC-RM2208HSW DC-RM2212HHW DC-RM2215HHW DC-RM2220HHW — —
    2.50 DC-RM2506HSW DC-RM2508HSW DC-RM2512HHW DC-RM2515HHW DC-RM2520HHW DC-RM2525HHW DC-RM2530HHW
    2.75 DC-RM2706HSW DC-RM2708HSW DC-RM2712HHW DC-RM2715HHW DC-RM2720HHW — —
    3.00 DC-RM3006HSW DC-RM3008HSW DC-RM3012HHW DC-RM3015HHW DC-RM3020HHW DC-RM3025HHW DC-RM3030HHW
    3.25 DC-RM3206HSW DC-RM3208HSW DC-RM3212HHW DC-RM3215HHW DC-RM3220HHW — —
    3.50 DC-RM3506HSW DC-RM3508HSW DC-RM3512HHW DC-RM3515HHW DC-RM3520HHW DC-RM3525HHW DC-RM3530HHW
    3.75 DC-RM3706HSW DC-RM3708HSW DC-RM3712HHW DC-RM3715HHW DC-RM3720HHW — —
    4.00 DC-RM4006HSW DC-RM4008HSW DC-RM4012HHW DC-RM4015HHW DC-RM4020HHW — —
    4.50 DC-RM4506HSW DC-RM4508HSW DC-RM4512HSW DC-RM4515HSW — — —
    5.00 DC-RM5006HSW DC-RM5008HSW DC-RM5012HSW DC-RM5015HSW — — —
    Enlarge table

    Please quote above item reference codes when placing an order.

    Balloon Compliance

    Balloon
    diameter
    (mm) ​    		 Pressure (atm) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
    3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
    2.00 1.58 1.65 1.72 1.79 1.84 1.88 1.92 1.95 1.98 2.00* 2.01 2.03 2.04 2.05 2.06 2.08 2.09 2.10 2.12 2.13** 2.14 2.15 2.17
    2.25 1.96 2.01 2.06 2.11 2.14 2.16 2.19 2.21 2.23 2.25* 2.26 2.28 2.29 2.31 2.32 2.34 2.35 2.36 2.38 2.39** 2.41 2.42 2.44
    2.50 2.19 2.24 2.30 2.36 2.38 2.41 2.44 2.46 2.48 2.50* 2.52 2.53 2.55 2.56 2.58 2.60 2.61 2.63 2.64 2.66** 2.68 2.69 2.71
    2.75 2.43 2.48 2.53 2.59 2.62 2.65 2.67 2.70 2.73 2.75* 2.77 2.79 2.80 2.82 2.84 2.86 2.87 2.89 2.91 2.93** 2.94 2.96 2.98
    3.00 2.65 2.71 2.76 2.82 2.85 2.89 2.92 2.95 2.97 3.00* 3.02 3.04 3.06 3.08 3.10 3.11 3.13 3.15 3.17 3.19** 3.21 3.23 3.25
    3.25 2.89 2.95 3.01 3.07 3.10 3.14 3.17 3.20 3.22 3.25* 3.27 3.29 3.31 3.33 3.35 3.37 3.39 3.42 3.44 3.46** 3.47 3.48 3.51
    3.50 3.13 3.19 3.26 3.32 3.35 3.39 3.42 3.45 3.47 3.50* 3.52 3.54 3.57 3.59 3.61 3.63 3.65 3.68 3.70 3.72** 3.74 3.74 3.76
    3.75 3.37 3.44 3.50 3.56 3.60 3.63 3.66 3.69 3.72 3.75* 3.77 3.80 3.82 3.84 3.86 3.88 3.90 3.92 3.94 3.96** 3.98 3.99 4.01
    4.00 3.58 3.65 3.72 3.79 3.83 3.87 3.90 3.94 3.97 4.00* 4.03 4.05 4.07 4.09 4.11 4.13 4.15 4.17 4.19 4.21** 4.23 4.26 4.28
    4.50 4.02 4.10 4.19 4.28 4.32 4.37 4.40 4.44 4.47 4.50* 4.53 4.56 4.59 4.63 4.66 4.68 4.71 4.75** 4.78 4.81 4.84 4.87 4.91
    5.00 4.52 4.59 4.67 4.75 4.80 4.85 4.89 4.93 4.96 5.00* 5.03 5.07 5.10 5.13 5.16 5.19 5.22 5.26** 5.29 5.32 5.35 5.38 5.41
    Enlarge table
    * Nominal pressure
    ** Rated burst pressure

    References

    ​​1 Compared with Hiryu. Non-Compliant PTCA Balloon Catheter manufactured by Terumo Corporation.

    Ordering Information. Balloon diameter (mm) ​, Balloon length (mm) / Item references ​ ​ ​ ​ ​ ​.
    Balloon markers: 2
    Usable length: 145 cm
    Coating: Hydrophilic
    Lesion entry profile: 0.43 mm
    Straight-Single Latex Plastic Terumo Accuforce Balloon Catheter, Size: Medium ; Application, Hospital ; Brand, Terumo ; Material, Latex ; Inner Diameter, 36mm.
  • wishlist

    PTCA Balloon Ryurei

    Description

    Confidence in your hands

    Ryureiâ„¢ has superior crossability1 thanks to the combination of low distal profiles and Terumo’s hydrophilic M coating. The short balloon bonding and reinforced shaft1 results in enhanced trackability1 while maintaining excellent pushability1.

    These features can increase physician’s confidence in success even during complex procedures.

    Characteristics

    Excellent Pusability

    The combination of flexible distal part,  tapered core wire on the midshaft and the thick proximal hypotube, results in smooth and balanced transition across the entire catheter for high transmission force, resulting in excellent pushability

    Superior Crossability2

    Thanks to the combination of distal  low profiles and the Terumo hydrophilic M-Coat, Ryurei offers low friction in crossing tight lesions

    Enhanced Trackability2

    With an optimal tip design and improved balloon bonding, Ryurei provides enhanced trackability, even in tortuous anatomy and difficult to navigate vessels.



    General specifications

    ​Shaft diameter ​1.9 Fr/0.64 mm Proximal • 2.5 Fr/0.84 mm Middle • 2.4 Fr/0.79 mm to 2.7 Fr/0.89 mm (tapered) Distal (1.00 to 1.50 mm) • 2.6 Fr/0.87 mm Distal (2.00 to 4.00 mm)
    ​Usable length ​145 cm
    ​Balloon markers # ​1(Ø1.0 to Ø 1.5 mm) • 2(Ø2.0 to Ø4.0 mm)
    ​Nominal pressure ​6 atm / 608 kPa
    ​Rated burst pressure Ø1.0 – 3.0 mm=14 atm(1419kPa) • Ø3.25 – 4.0 mm = 12 atm(1216 kPa)
    ​Guidewire compatibility ​Maximum diameter: 0.014″ / 0.36 mm
    ​Lesion entry profile ​0.41 mm (Ø1.00 to Ø1.50 mm) • 0.43 mm (Ø2.00 to Ø4.00 mm)
    ​Coating ​Hydrophilic

    Item specifications

    Balloon length / Product code​

    ​ ​ ​ ​ ​ ​
    Balloon Diameter 5 mm 10 mm 15 mm 20 mm 30 mm 40 mm
    1.00 mm DC-RR1005HH
    ​1.25 mm ​DC-RR1205HH ​​DC-RR1210HH ​​DC-RR1215HH ​​DC-RR1220HH ​ ​
    1.50 mm DC-RR1505HH DC-RR1510HH DC-RR1515HH DC-RR1520HH
    2.00 mm DC-RR2010HHW DC-RR2015HHW DC-RR2020HHW DC-RR2030HHW DC-RR2040HHW
    2.25 mm DC-RR2210HHW DC-RR2215HHW DC-RR2220HHW
    2.50 mm DC-RR2510HHW DC-RR2515HHW DC-RR2520HHW DC-RR2530HHW DC-RR2540HHW
    2.75 mm DCRR2710HHW DC-RR2715HHW DC-RR2720HHW
    3.00 mm DC-RR3010HHW DC-RR3015HHW DC-RR3020HHW DC-RR3030HHW DC-RR3040HHW
    3.25 mm DC-RR3210HHW DC-RR3215HHW DC-RR3220HHW
    3.50 mm DC-RR3510HHW DC-RR3515HHW DC-RR3520HHW DC-RR3530HHW DC-RR3540HHW
    3.75 mm DC-RR3710HHW DC-RR3715HHW DC-RR3720HHW
    4.00 mm DC-RR4010HHW DC-RR4015HHW DC-RR4020HHW

    References

    1 Ryurei φ1.00-5mm compared to Tazuna 1.25-10 mm- Data on file ISCD-416-31-4
    * For Ryurei Ø 1.00 mm – Ø 1.50 mm.
    ** For Ryurei Ø 1.00mm – 5mm ​



    2 Compared to Tazuna PTCA dilatation catheter

  • wishlist

    Sprinter OTW Balloon

    Sprinter OTW Semicompliant

    Balloon Dilatation Catheter

    Sprinterâ„¢ over-the-wire semicompliant balloon offers low-tip and crossing profiles with a comprehensive size matrix

    OVERVIEW

    The Sprinterâ„¢ over-the-wire (OTW) semicompliant balloon dilatation catheter is available in a broad size matrix.

    FEATURES

    MiniWrap folding is used on 1.50-4.00 balloons. The 1.50 mm balloon has two folds.

    1.  Selective Dura-Trac coating
    2.  2.5 mm tip
    3.  FasTrac tip

    Balloon’s

    1. Distal shaft
    2. Gold-swaged marker bands
    3. Selective Dura-Trac hydrophilic coating
    4. Fulcrum balloon material
    5. Proximal shaft (oval)
    6. FasTrac tip
