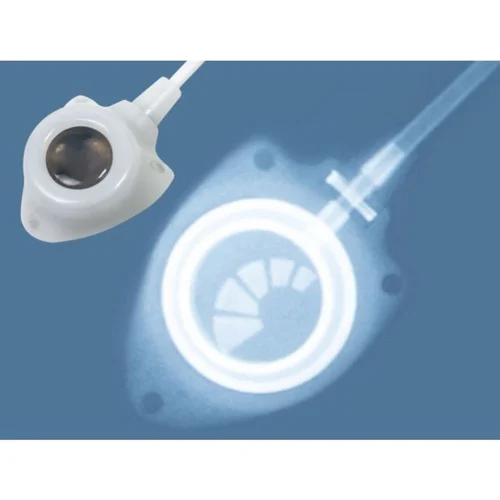

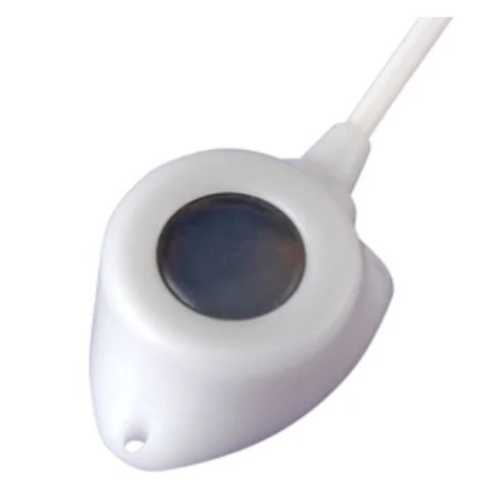

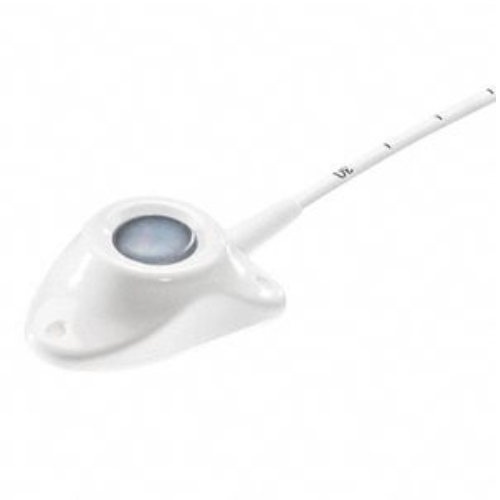

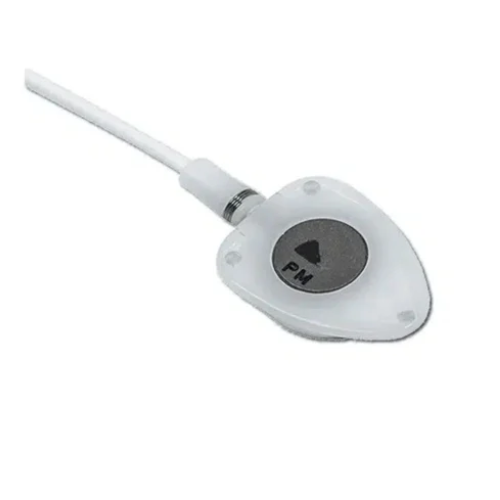

Polysite Ref 40010
There are two types of port:
· Port with catheter to connect in silicone (codes VPE2005ISP and VPE2007ISP) or in polyurethane (codes VPE2015ISP and VPE2016ISP).
· Port with pre-connected catheter in silicone (codes VPE2105ISP and VPE2107ISP) or in polyurethane (codes VPE2115ISP and VPE2116ISP).
Each percuteneous placement kit Polysite ISP contains:
· One titanium and POM (polyoxymethylene) micro port with a silicone septum,
· One 60cm (for paediatric reference with 5Fr catheter) or 80cm XRO silicone or polyurethane catheter. Graduation every cm with a numbered marking every 5cm from 5 to 40cm,
· Two connection rings (only one for pre-connected references) with a Phynox thread containing nickel,
· One straight Huber needle (22G),
· One vein pick,
· One flushing connector (for non pre-connected references), pre-connected to the catheter,
· One 10ml syringe,
· One marked J guidewire – 0.018″ – 40mm for paediatric references VPE2xx5ISP and 0.035″ – 60mm for all other references codes VPE2xxxISP,
· One echogenic introducer needle – 20G – 38mm for paediatric references VPE2xx5ISP and 18G – 70mm for all other codes VPE2xxxISP,
· One tunneler diameter 2mm – length 18cm for paediatric references VPE2xx5ISP and diameter 2.5mm – length 23cm for all other references VPE2xxxISP,
· One peelable introducer – length 12cm for paediatric references VPE2xx5ISP and 17cm for all other codes VPE2xxxISP.
