GUIDING CATHETER EKARI

Product Overview

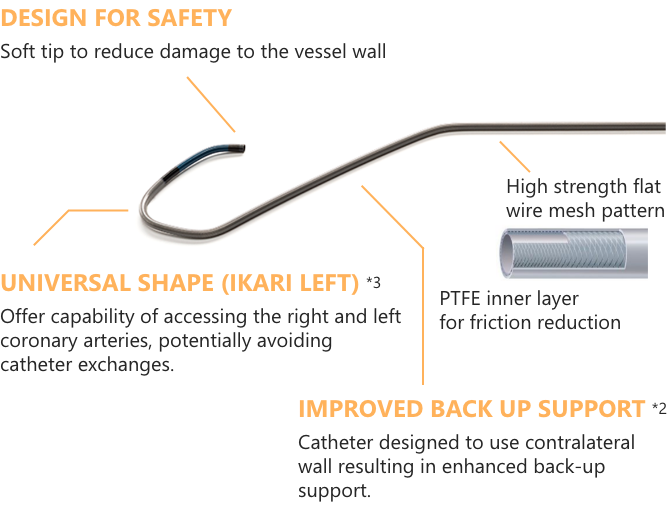

IMPROVED BACK UP SUPPORT^*1

Catheter designed to use contralateral wall resulting in enhanced back-up support.

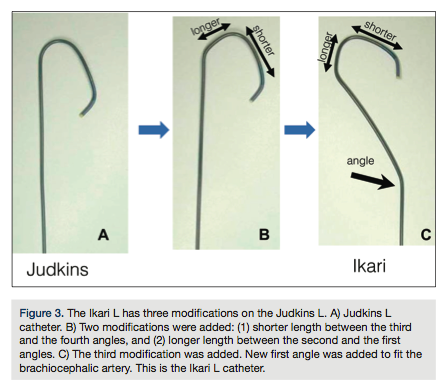

UNIVERSAL SHAPE (IKARI LEFT) ^*2

Offer capability of accessing the right and left coronary arteries, potentially avoiding catheter exchanges.

DESIGN FOR SAFETY

Soft tip to reduce damage to the vessel wall

*1: Ikari Y, Nagaoka M, Kim JY, Merino Y, Tanabe T. The physics of guiding catheters for the left coronary artery in transfemoral and trans-radial interventions. J Invasive Cardio. 2005 Dec; 17(12): 636-641.*2: Youssef AA, Hsieh YK, Cheng CI, We CJ. A single trans-radial guiding catheter for right and left coronary angiography and intervention. Euro intervention 2007; 3: 475-481.

Patients who have had cardiac catheterization or coronary angioplasty often are required to stay in bed with restricted movement for three to 24 hours afterward to prevent bleeding from the femoral artery catheter insertion site.

Features and Benefits

Improved back up support in comparison to Terumo standard femoral guiding catheter shapes^*1

*1: Based on comparative studies made among Terumo Guiding Catheters*2: Ekari Y, Nagaoka M, Kim JY, Merino Y, Tanabe T. The physics of guiding catheters for the left coronary artery in transfemoral and trans-radial interventions. J Invasive Cardio. 2005 Dec; 17(12): 636-641.*3: Youssef AA, Hsieh YK, Cheng CI, We CJ. A single trans-radial guiding catheter for right and left coronary angiography and intervention. Euro intervention 2007; 3: 475-481.

Guide catheters are required for all coronary interventions to provide access to the coronary ostium and support equipment delivery. The ideal guide provides stability for device advancement through the coronary anatomy, while minimizing vessel trauma and allowing for vessel opacification.

The catheter is guided to the narrowed artery. Then, a smaller balloon catheter is inserted through the flexible catheter and inflated at the narrowed area to open it. Often, the doctor will also place a mesh coil called a stent at the narrowed part to help keep the artery open.

Add to wishlist

Description
Reviews (0)

GUIDING CATHETER EKARI

Reviews

There are no reviews yet.

Be the first to review “GUIDING CATHETER EKARI”

Category: products

Related products

wishlist

Coronary Diagnostic Catheter (OPTITORQUE)

PRODUCT OVERVIEW

A complete line of coronary diagnostic catheters designed for superior torque control and precise placement.

RADIAL-SPECIFIC UNIVERSAL SHAPES

Radial Specific curves designed to enable support and alignment during catheterization¹
Excellent back-up support for angiography of both RCA and LCA with a single catheter^1,a
Universal design eliminates the need for catheter exchanges and potentially shortens procedural and fluoroscopic time

_{1. DOF Reference}^{a. when compared to leading competitors

2. Ikaria article.}

OPTITORQUE Classic Shapes

Shape Category	Product Code 5 Fr / 1.70 mm	Product Code 6 Fr / 2.00 mm	Shape Name (cm)	Length Holes	Side Tip	Shape
Pigtail	40-5030	40-6030	Straight Pigtail	110	6
Pigtail	40-5031	40-6031	Angled Pigtail 155°	110	6
Judkins Left	40-5040	40-6040	JL 3.5 (Judkins Left 3.5 cm)	100
	40-5041	40-6041	JL 4.0 (Judkins Left 4.0 cm)	100
	40-5042	40-6042	JL 5.0 (Judkins Left 5.0 cm)	100
Judkins Right	40-5043	40-6043	JR 3.5 (Judkins Right 3.5 cm)	100
	40-5044	40-6044	JR 4.0 (Judkins Right 4.0 cm)	100
	40-5045		JR 5.0 (Judkins Right 5.0 cm)	100
Bypass	40-5050	40-6050	Internal Mammary	100
Amplatz	40-5060		AL 1 (Amplatz Left Small Type)	100
Amplatz	40-5061	40-6061	AL 2 (Amplatz Left Middle Type)	100

UNIQUE DESIGN

Designed for coaxial alignment to the ostium, allowing the catheter to sit at the appropriate angle for optimal engagement
Large lumen allows high flow of contrast media and allows downsizing of French size

PROVEN PERFORMANCE

Superior torqueability for precise placement^1,a
Excellent trackability in tortuous anatomy while navigating the radial artery^1,a
Superior flow rates for diagnostic imaging^1,a

_1.DOF^{a. When compared to leading competitors}

wishlist

SPRINTER LEGEND PTCA BALLOON

SPRINTER LEGEND 1.25 BALLOON CATHETER

Super Crosser Semi compliant Balloon Dilatation Catheter (RX/OTW)

Sprinter™ Legend™ 1.25 SuperCrosser semicompliant balloon dilatation catheter delivers exceptional crossability to treat today’s challenging lesions.

With innovative crossing technologies and 57 sizes, the Sprinter™ Legend™ RX semicompliant balloon dilatation catheter provides you with the power to cross.

OVERVIEW

During difficult cases, reach for a slim Sprinter™ Legend™ 1.25 mm Super Crosser semi compliant coronary balloon catheter featuring:

Award-winning* Zerofold technology — no wrapped material and no balloon shoulders
Low 0.5 mm (0.020 in) crossing profile
OTW and RX platforms

ORDERING INFORMATION

BALLOON LENGTHS 6, 10, 12, AND 15 MM



1.25	SPL12506WL	SPL12510WL	SPL12515WL	SPL12520WL

Sprinter Legend RX Semi compliant

Balloon Dilatation Catheter

OVERVIEW

Performance You Can Trust

Sprinter™ Legend™ semicompliant balloons help you cross, open, and treat lesions during challenging percutaneous coronary interventions (PCIs), and feature:

Some of the industry’s lowest crossing profiles¹
Innovative crossing technology
A broad range of sizes

ORDERING INFORMATION

BALLOON LENGTHS 6, 10, 12, AND 15 MM

Balloon Diameter (mm)
Balloon Diameter (mm)
1.25	SPL12506X	SPL12510X	SPL12512X	SPL12515X
1.50	SPL15006X	SPL15010X	SPL15012X	SPL15015X
2.00	SPL20006X	SPL20010X	SPL20012X	SPL20015X
2.25	SPL22506X	SPL22510X	SPL22512X	SPL22515X
2.50	SPL25006X	SPL25010X	SPL25012X	SPL25015X
2.75	SPL27506X	—	SPL27512X	SPL27515X
3.00	SPL30006X	SPL30010X	SPL30012X	SPL30015X
3.25	—	—	SPL32512X	SPL32515X
3.50	SPL35006X	SPL35010X	SPL35012X	SPL35015X
3.75	—	—	SPL37512X	SPL37515X
4.00	SPL40006X	SPL40010X	SPL40012X	SPL40015X

BALLOON LENGTHS 20, 25, AND 30 MM

Balloon Diameter (mm)
Balloon Diameter (mm)
1.25	SPL12520X	—	—
1.50	SPL15020X	—	—
2.00	SPL20020X	SPL20025X	SPL20030X
2.25	SPL22520X	SPL22525X	—
2.50	SPL25020X	SPL25025X	SPL25030X
2.75	SPL27520X	SPL27525X	—
3.00	SPL30020X	SPL30025X	SPL30030X
3.25	SPL32520X	—	—
3.50	SPL35020X	SPL35025X	SPL35030X
3.75	SPL37520X	—	—
4.00	SPL40020X	SPL40025X	SPL40030X

Rated 1.00 out of 5

wishlist

PROGREAT® MICROCATHETHER

PRODUCT OVERVIEW

PROGREAT^®Microcatheters are designed to allow navigation through tortuous peripheral vessels for optimal access and delivery of therapeutic embolization.

Terumo Progreat 2.7Fr. Microcatheter is Designed to provide optimal trackability and support even in the most tortuous anatomy.

DESIGNED TO CONFIDENTLY DELIVER EMBOLOTHERAPY

Tungsten coil reinforcement for kink resistance²
PTFE inner layer is designed for exceptional guidewire tracking, with virtually frictionless delivery of coils and other embolics²
DMSO Compatible³
Radiopaque 0.7 mm platinum/iridium markers allow for rapid and precise positioning⁴

DESIGNED TO ENHANCE ACCESS TO SMALL PERIPHERAL VESSELS

TERUMO Glide Technology^TM hydrophilic coating enhances navigation through tortuous anatomy^1,2
Unique varied tungsten coil pitch construction provides distal flexibility and proximal pushability, enhancing vessel selectivity and catheter placement.

PROGREAT® COAXIAL MICROCATHETER SYSTEM

Preloaded with uniquely designed 0.021” GLIDEWIRE^® GT for the 2.8Fr system and 0.018″ GLIDEWIRE^® GT for the 2.4Fr system¹
Available in 2.8Fr and 2.4Fr
Enables simultaneous preparation of microcatheter and guidewire, which may save time and increase procedural efficiency¹

PROGREAT 2.4 COAXIAL PROVEN TO REACH DISTAL VESSELS WITH EASE⁴

Provides greater vessel selectivity and demonstrated superiority in traversing tortuous anatomy
Provides best-in-class kink resistance, demonstrated in both the distal and proximal shaft.

PROGREAT® Microcatheter Product Codes

Includes hemostatic valve and shaping mandrel

Fr Size	Product Code	Length (cm)	Tip Shape	Max Pressure (psi)	RO Markers	Hydrophilic Coating Length (cm)
2.4	MC*PB2411Y	110	Straight	750	1	50
	MC*PB2413Y	130	Straight		1	70
	MC*PB2413ZRA	130	70 Deg. Angle		1	70
	MC*PB2413ZRC	130	J Curve		1	70
	MC*PV2415Y	150	Straight		2	90
	MC*PV2415ZRA	150	70 Deg. Angle		2	90
	MC*PV2415ZRC	150	J Curve		2	90
2.7	MC*PC2711Y	110	Straight	750	–	50
2.7	MC*PC27137	130	Straight	750	–	70
2.8	MC*PB2811Y	110	Straight	900	1	50
	MC*PB2813Y	130	Straight		1	70
	MC*PV2815Y	150	Straight		2	90

PROGREAT^® Coaxial Microcatheter System Codes

Includes unique GLIDEWIRE® GT Guidewire, wire stopper, guidewire introducer, hemostatic valve, 2.5 mL syringe, and shaping mandrel

Fr Size	Product Code	Length (cm)	Max Pressure (PSI)	RO Markers	Hydrophilic Coating Length (cm)	Glidewire® GT Length (cm)	Glidewire® GT Size (in)
2.4 Fr	MC*PE24111YB	110	750	1	50	120	0.018
2.4 Fr	MC*PE24131YB	130	750	1	70	140	0.018
2.4 Fr	MC*PE24151YV	150	750	2	90	160	0.018
2.7 Fr	MC*PE27111Y	110	750	–	50	120	0.021
2.7 Fr	MC*PE27131Y	130	750	–	70	140	0.021
2.8 Fr	MC*PE28111YB	110	900	1	50	120	0.021
2.8 Fr	MC*PE28131YB	130	900	1	70	140	0.021
2.8 Fr	MC*PE28151YV	150	900	2	90	160	0.021

PRODUCT SPECIFICATIONS

Catheter OD	Length (cm)	Inner Diameter (in/mm)	Max GW (in)	Embolic Compatibility	Dead Space Volume (mL)	*Actual Flow Rate (mL/sec) @ 750 psi**	*Actual Flow Rate (mL/sec) @ 900 psi**
2.4/2.9Fr (0.80/0.97mm)	110	0.022″/0.57	0.018″	0.018″ Coils/HydroPearl® 600 ± 75 μm	0.48	2.3	–
2.4/2.9Fr (0.80/0.97mm)	130	0.022″/0.57	0.018″	0.018″ Coils/HydroPearl® 600 ± 75 μm	0.53	2	–
2.4/2.9Fr (0.80/0.97mm)	150	0.022″/0.57	0.018″	0.018″ Coils/HydroPearl® 600 ± 75 μm	0.58	1.8	–
2.7/2.9Fr (0.90/0.97mm)	110	0.025″/0.065	0.021″	0.018″ Coils/HydroPearl® 800 ± 75 μm	0.57	3.5	–
2.7/2.9Fr (0.90/0.97mm)	130	0.025″/0.065	0.021″	0.018″ Coils/HydroPearl® 800 ± 75 μm	0.64	3.2	–
2.8/3.0Fr (0.93/1.00mm)	110	0.027″/0.70	0.021″	0.018″ Coils/HydroPearl® 800 ± 75 μm	0.61	4.1	4.7
2.8/3.0Fr (0.93/1.00mm)	130	0.027″/0.70	0.021″	0.018″ Coils/HydroPearl® 800 ± 75 μm	0.68	3.7	4.3
2.8/3.0Fr (0.93/1.00mm)	150	0.027″/0.70	0.021″	0.018″ Coils/HydroPearl® 800 ± 75 μm	0.75	3.1	3.9

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

Catheter [Instructions for Use]. Somerset, NJ: Terumo Medical Corporation; 2016
PROGREAT Catheter 510(k); 2003
PROGREAT DMSO Compatibility Statement Letter
Data on file.

wishlist

ACT CARTRIDGE (HR-ACT)

Medtronic 402-03 ACT PLUS Disposable Test Cartridges 2-Channel Test Cartridges, High Range Activated Clotting Time (HR ACT) – Fresh whole blood test for CV surgery, PTCA, or vascular surgery, Box of 50

SKU:

402-03

Weight:

3.00 LBS

Availability:

2-3 Business days

Shipping:

Calculated at checkout

Quantity:

Product Description

Medtronic 402-03 ACT PLUS Disposable Test Cartridges 2-Channel Test Cartridges, High Range Activated Clotting Time (HR ACT) – Fresh whole blood test for CV surgery, PTCA, or vascular surgery, Box of 50

ACT PLUS Disposable Test Cartridges 2-Channel Test Cartridges

*402-01*	*Low Range Activated Clotting Time (LR ACT) – Fresh whole blood test for therapeutic heparin monitoring, post-angioplasty or dialysis*	*50 per box*
*402-02*	*Recalcified Activated Clotting Time (RACT) – For use with citrated whole blood samples at concentrations of 0.0 – 1.5 u/mL*	*50 per box*
*402-03*	*High Range Activated Clotting Time (HR ACT) – Fresh whole blood test for CV surgery, PTCA, or vascular surgery*	*50 per box*
*402-07*	*Heparinase Test Cartridge (HTC) – Fresh whole blood test used to identify the presence of heparin in the patient’s blood sample*	*20 per box*
