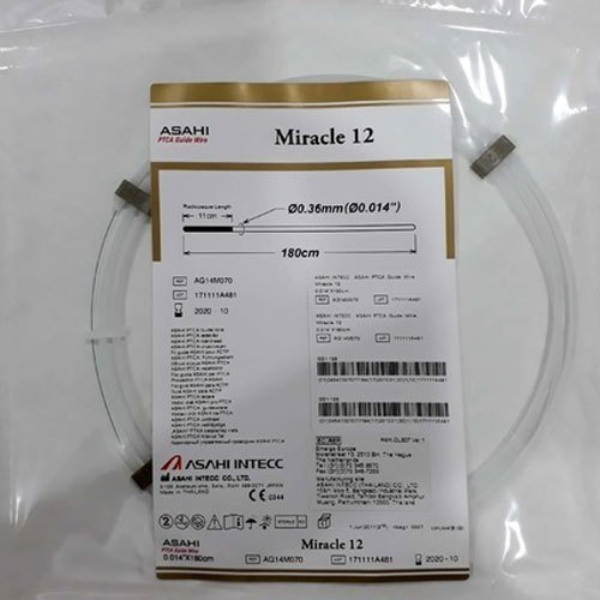

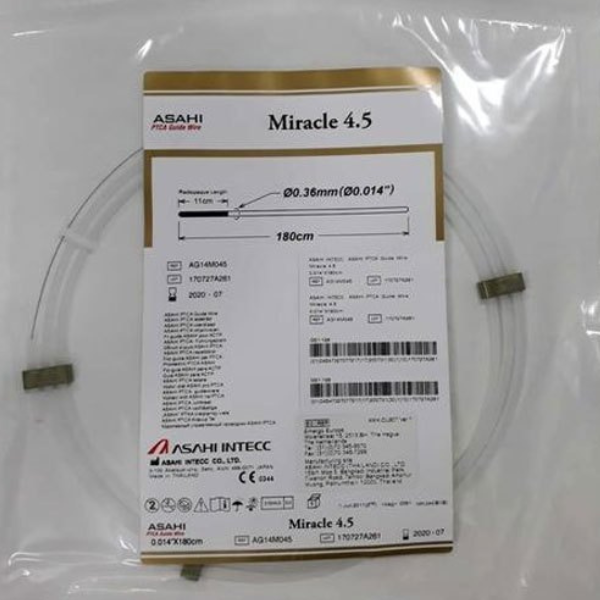

ASAHI MIRACLE/MIRACLEBbros

Related products

•

  Rated 4.00 out of 5

  wishlist

  PTCA Balloon Ryurei

  Description

  Confidence in your hands

  Ryurei™ has superior crossability¹ thanks to the combination of low distal profiles and Terumo’s hydrophilic M coating. The short balloon bonding and reinforced shaft¹ results in enhanced trackability¹ while maintaining excellent pushability¹.

  These features can increase physician’s confidence in success even during complex procedures.

  Characteristics

  Excellent Pusability

  The combination of flexible distal part,  tapered core wire on the midshaft and the thick proximal hypotube, results in smooth and balanced transition across the entire catheter for high transmission force, resulting in excellent pushability

  Superior Crossability²

  Thanks to the combination of distal  low profiles and the Terumo hydrophilic M-Coat, Ryurei offers low friction in crossing tight lesions

  Enhanced Trackability²

  With an optimal tip design and improved balloon bonding, Ryurei provides enhanced trackability, even in tortuous anatomy and difficult to navigate vessels.





  General specifications

  ​Shaft diameter	​1.9 Fr/0.64 mm Proximal • 2.5 Fr/0.84 mm Middle • 2.4 Fr/0.79 mm to 2.7 Fr/0.89 mm (tapered) Distal (1.00 to 1.50 mm) • 2.6 Fr/0.87 mm Distal (2.00 to 4.00 mm)
  ​Usable length	​145 cm
  ​Balloon markers #	​1(Ø1.0 to Ø 1.5 mm) • 2(Ø2.0 to Ø4.0 mm)
  ​Nominal pressure	​6 atm / 608 kPa
  ​Rated burst pressure	Ø1.0 – 3.0 mm=14 atm(1419kPa) • Ø3.25 – 4.0 mm = 12 atm(1216 kPa)
  ​Guidewire compatibility	​Maximum diameter: 0.014″ / 0.36 mm
  ​Lesion entry profile	​0.41 mm (Ø1.00 to Ø1.50 mm) • 0.43 mm (Ø2.00 to Ø4.00 mm)
  ​Coating	​Hydrophilic

  Item specifications

  Balloon length / Product code​ ​ ​ ​ ​ ​ ​
  Balloon Diameter	5 mm	10 mm	15 mm	20 mm	30 mm	40 mm
  1.00 mm	DC-RR1005HH
  ​1.25 mm	​DC-RR1205HH	​​DC-RR1210HH	​​DC-RR1215HH	​​DC-RR1220HH	​	​
  1.50 mm	DC-RR1505HH	DC-RR1510HH	DC-RR1515HH	DC-RR1520HH
  2.00 mm		DC-RR2010HHW	DC-RR2015HHW	DC-RR2020HHW	DC-RR2030HHW	DC-RR2040HHW
  2.25 mm		DC-RR2210HHW	DC-RR2215HHW	DC-RR2220HHW
  2.50 mm		DC-RR2510HHW	DC-RR2515HHW	DC-RR2520HHW	DC-RR2530HHW	DC-RR2540HHW
  2.75 mm		DCRR2710HHW	DC-RR2715HHW	DC-RR2720HHW
  3.00 mm		DC-RR3010HHW	DC-RR3015HHW	DC-RR3020HHW	DC-RR3030HHW	DC-RR3040HHW
  3.25 mm		DC-RR3210HHW	DC-RR3215HHW	DC-RR3220HHW
  3.50 mm		DC-RR3510HHW	DC-RR3515HHW	DC-RR3520HHW	DC-RR3530HHW	DC-RR3540HHW
  3.75 mm		DC-RR3710HHW	DC-RR3715HHW	DC-RR3720HHW
  4.00 mm		DC-RR4010HHW	DC-RR4015HHW	DC-RR4020HHW

  References

  ¹ Ryurei φ1.00-5mm compared to Tazuna 1.25-10 mm- Data on file ISCD-416-31-4
  * For Ryurei Ø 1.00 mm – Ø 1.50 mm.
  ** For Ryurei Ø 1.00mm – 5mm ​



  ² Compared to Tazuna PTCA dilatation catheter

•

  Rated 3.00 out of 5

  wishlist

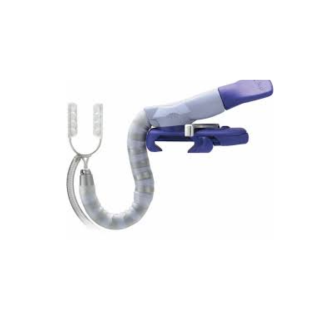

  OCTOPUS TISSUE STABILIZER

  Octopus

  Tissue Stabilizers

  OCTOPUS TISSUE STABILIZERS

  Our newest generation tissue stabilizer features automatic pod spread for effective visualization.

  SUMMARY

  OCTOPUS EVOLUTION AS – THE NEXT GENERATION TISSUE STABILIZER

  The newest generation tissue stabiliser from Medtronic demonstrates an enduring commitment to the cardiac surgeon. With all the same features of the Octopus™ Evolution – enhanced stability, flexibility, and a lower profile for unlimited positioning options – the Octopus Evolution AS offers an automatic pod spread feature that enhances visibility at the anastomotic site.

  • Automatic pod spread for effective visualisation of the anastomotic site
  • Very secure arm for maximum stabilization
  • Greater flexibility enables unlimited positioning options
  • Simple, secure, one-handed attachment of clamp to the retractor

  OCTOPUS EVOLUTION – LOW PROFILE WITH FLEXIBILITY AND REACH

  The Octopus Evolution stabilizer provides enhanced stability, flexibility, and a lower profile for unlimited positioning options.

  Enhanced stability and flexibility features:

  • Improved visualisation with:
    • Lower profile headlink
    • Surgeon controlled pod-spread
  • Allowance for multiple device positions including pods-up, pods-down and pods-to-the-side applications
  • Increased flexibility and range of motion
  • Longer, effective reach of the articulating arm provides easier access to all vessels
  • Simple, secure, one-handed engagement of clamp and turret assembly

  THE OCTOPUS 4.3 STABILISER FEATURES SUPERIOR ARM STRENGTH AND UNMATCHED STABILITY IN THE CLAMP/TURRET MECHANISM.

  • Dual vacuum tubes offer superior tissue capture
  • Internal cable enables arm twisting for maximum access and flexibility
  • Reinforced arm links offer better stabilisation
  • Whale tail tightens easily
  • Swivel turret offers access while maximising visualisation
  • Head lock design allows “toes up” position, pod spread and bend
  • Rigid clamp designed to eliminate rocking

  OCTOPUS 4 – EXCELLENT STABILITY AND FLEXIBILITY

  The Octopus 4 tissue stabiliser includes innovative features, such as clear, malleable pods combined with a smaller diameter, more flexible arm, and an ultra-low headlink profile.

  • Pod spreading optimises sewing space and stability of anastomotic site
  • Reduced headlink profile improves visibility of surgical site
  • Rigid, multi-material arm reduces movement at the anastomotic site
  • Smaller diameter, more flexible arm offers greater flexibility in positioning
  • Smaller, color-coded whale tail provides minimal obstruction
  • Single vacuum tubing line minimises obstruction
  • Innovative turret design increases effective arm reach, dramatically increasing positioning options with 360-degree movement
•

  wishlist

  RADIFOCUS INTRODUCER  SHEATH

  Radifocus™ Introducer II Standard Kit A

  Introducer Sheath (FEMORAL)

  Kit of vascular introducer with hemostatic valve with excellent blood tightness,
  easy and non traumatic vessel insertion, patented valve design for a unique
  features package.

  • Total Integrated Fit (TIF) tip tapering: tapering design at the tip of the sheath and dilator to facilitate smooth penetration
  • Cross-cut hemostasis valve to avoid blood reflux and air aspiration
  • Thin radiopaque sheath with anti-kinking sleeve for easy catheter handling
  • Snap-on/click-off dilator lock prevents dilator back-out during insertion and allows one-hand unlocking
  • Wide variety of kit variations providing all elements for quick vessel access:  4-11 Fr  sheaths, 5-16 cm lengths, Surf lash needle

  General specifications

  Sheath length	10 cm
  Mini guidewire	Plastic Straight and Angled 0.025″ (0.64 mm) for 4 Fr, straight mini guidewire type; 0.035″ (0.89 mm) for all others 45 cm
  Entry needle	Plastic IV Catheter – 18G x 2 ½” (1.2 x 64 mm), except for 4 Fr with 45 cm straight mini guidewire: 20G x 2″ (0.9 x 51 mm) 2.5 ml syringe is included
  Guidewire compatibility	0.025″ (0.64 mm) for 4 Fr, straight mini guidewire type 0.035″ (0.89 mm) for all others
  Packaging	Tray
  ​A Kit content	​Sheath, dilator, plastic mini guidewire and plastic IV catheter (entry needle)



  Item specifications

  Inner diameter ​	Mini guidewire type ​
  	45 cm angled	45 cm straight
  4 Fr	RS+A40K10AQ	RS+A40G10SQ
  ​4 Fr	​RS*A40G10SQ	​RS*A40G05SQ
  ​4 Fr	​RS*A40K10SQ	​RS*A40G07SQ
  ​5 Fr	​RS*A50K10AQ	​RS*A50G07SQ
  5 Fr	RS+A50K10AQ	RS+A50K10SQ
  6 Fr	RS+A60K10AQ	RS+A60K10SQ
  ​6 Fr	RS*A60K10AQ	​RS*A60G07SQ
  6 Fr​	​—	​RS*A60G16SQZ
  ​6 Fr	​—	​RS*A60K10SQ
  ​6 Fr	​—	​RS+A50K10SQ
  7 Fr	—	RS+A70K10SQ
  ​7 Fr	​—	​RS*A70G07SQ
  ​7 Fr	—​	​RS*A70K10SQ
  8 Fr	—​	RS+A80K10SQ
  ​8 Fr	​—	​RS*A80K10SQ
  9 Fr	—	RS*A90K10SQ
  10 Fr	—	RS*A10K10SQ
  11 Fr	—	RS*A11K10SQ

  A Kit includes: introducer sheath, dilator, mini Guide wire, entry venous catheter, 2.5 cc syringe
  B Kit includes: introducer sheath, dilator, mini Guide wire
  C Kit includes: introducer sheath, dilator
  R Kit includes: introducer sheath, dilator, mini Guide wire, 18 G x 2 3/4” / 1.2 x 70 mm entry metallic needle
  Other code numbers are available on special demand. For any further information, please contact your Terumo local representative
  Units per box: 5 for kits in tray and 10 for kits in pouch.

•

  wishlist

  PTCA BALLOON ACCUFORCE

  Description

  Force. Success. No Compromise.

  The great balance between high pressure and high resistance, accurate dilatation and advanced deliverability. Accuforce is the latest generation of non-compliant PTCA balloons.

  Characteristics

  • ​Provides impressive high-pressure resistance up to 22 atm
  • Optimizes (re)crossability and deliverability¹
  • Operates accurately in pre- and post-dilatation

  General specifications

  Shaft diameter	1.9 Fr / 0.64 mm Proximal 2.5 Fr / 0.84 mm Mid 2.6 Fr / 0.86 mm Distal
  Usable length	145 cm
  Balloon markers	2
  Nominal pressure	12 atm / 1216 kPa
  Rated burst pressure	22 atm / 2229 kPa (2.0 mm to 4.0 mm) 20 atm / 2026 kPa (4.5 and 5.0 mm)
  Guidewire compatibility	Maximum diameter 0.014″ / 0.36 mm
  Lesion entry profile	0.43 mm
  Coating	Hydrophilic

  Item specifications

  Ordering Information

  Balloon diameter (mm) ​	Balloon length (mm) / Item references  ​ ​ ​ ​ ​ ​
  	6	8	12	15	20	25	30
  2.00	DC-RM2006HSW	DC-RM2008HSW	DC-RM2012HHW	DC-RM2015HHW	DC-RM2020HHW	—	—
  2.25	DC-RM2206HSW	DC-RM2208HSW	DC-RM2212HHW	DC-RM2215HHW	DC-RM2220HHW	—	—
  2.50	DC-RM2506HSW	DC-RM2508HSW	DC-RM2512HHW	DC-RM2515HHW	DC-RM2520HHW	DC-RM2525HHW	DC-RM2530HHW
  2.75	DC-RM2706HSW	DC-RM2708HSW	DC-RM2712HHW	DC-RM2715HHW	DC-RM2720HHW	—	—
  3.00	DC-RM3006HSW	DC-RM3008HSW	DC-RM3012HHW	DC-RM3015HHW	DC-RM3020HHW	DC-RM3025HHW	DC-RM3030HHW
  3.25	DC-RM3206HSW	DC-RM3208HSW	DC-RM3212HHW	DC-RM3215HHW	DC-RM3220HHW	—	—
  3.50	DC-RM3506HSW	DC-RM3508HSW	DC-RM3512HHW	DC-RM3515HHW	DC-RM3520HHW	DC-RM3525HHW	DC-RM3530HHW
  3.75	DC-RM3706HSW	DC-RM3708HSW	DC-RM3712HHW	DC-RM3715HHW	DC-RM3720HHW	—	—
  4.00	DC-RM4006HSW	DC-RM4008HSW	DC-RM4012HHW	DC-RM4015HHW	DC-RM4020HHW	—	—
  4.50	DC-RM4506HSW	DC-RM4508HSW	DC-RM4512HSW	DC-RM4515HSW	—	—	—
  5.00	DC-RM5006HSW	DC-RM5008HSW	DC-RM5012HSW	DC-RM5015HSW	—	—	—

  Enlarge table

  Please quote above item reference codes when placing an order.

  Balloon Compliance

  Balloon diameter (mm) ​	Pressure (atm) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
  	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25
  2.00	1.58	1.65	1.72	1.79	1.84	1.88	1.92	1.95	1.98	2.00*	2.01	2.03	2.04	2.05	2.06	2.08	2.09	2.10	2.12	2.13**	2.14	2.15	2.17
  2.25	1.96	2.01	2.06	2.11	2.14	2.16	2.19	2.21	2.23	2.25*	2.26	2.28	2.29	2.31	2.32	2.34	2.35	2.36	2.38	2.39**	2.41	2.42	2.44
  2.50	2.19	2.24	2.30	2.36	2.38	2.41	2.44	2.46	2.48	2.50*	2.52	2.53	2.55	2.56	2.58	2.60	2.61	2.63	2.64	2.66**	2.68	2.69	2.71
  2.75	2.43	2.48	2.53	2.59	2.62	2.65	2.67	2.70	2.73	2.75*	2.77	2.79	2.80	2.82	2.84	2.86	2.87	2.89	2.91	2.93**	2.94	2.96	2.98
  3.00	2.65	2.71	2.76	2.82	2.85	2.89	2.92	2.95	2.97	3.00*	3.02	3.04	3.06	3.08	3.10	3.11	3.13	3.15	3.17	3.19**	3.21	3.23	3.25
  3.25	2.89	2.95	3.01	3.07	3.10	3.14	3.17	3.20	3.22	3.25*	3.27	3.29	3.31	3.33	3.35	3.37	3.39	3.42	3.44	3.46**	3.47	3.48	3.51
  3.50	3.13	3.19	3.26	3.32	3.35	3.39	3.42	3.45	3.47	3.50*	3.52	3.54	3.57	3.59	3.61	3.63	3.65	3.68	3.70	3.72**	3.74	3.74	3.76
  3.75	3.37	3.44	3.50	3.56	3.60	3.63	3.66	3.69	3.72	3.75*	3.77	3.80	3.82	3.84	3.86	3.88	3.90	3.92	3.94	3.96**	3.98	3.99	4.01
  4.00	3.58	3.65	3.72	3.79	3.83	3.87	3.90	3.94	3.97	4.00*	4.03	4.05	4.07	4.09	4.11	4.13	4.15	4.17	4.19	4.21**	4.23	4.26	4.28
  4.50	4.02	4.10	4.19	4.28	4.32	4.37	4.40	4.44	4.47	4.50*	4.53	4.56	4.59	4.63	4.66	4.68	4.71	4.75**	4.78	4.81	4.84	4.87	4.91
  5.00	4.52	4.59	4.67	4.75	4.80	4.85	4.89	4.93	4.96	5.00*	5.03	5.07	5.10	5.13	5.16	5.19	5.22	5.26**	5.29	5.32	5.35	5.38	5.41

  Enlarge table

  * Nominal pressure
  ** Rated burst pressure

  References

  ^​​1 Compared with Hiryu. Non-Compliant PTCA Balloon Catheter manufactured by Terumo Corporation.

  Ordering Information. Balloon diameter (mm) ​, Balloon length (mm) / Item references ​ ​ ​ ​ ​ ​.

  Balloon markers: 2

  Usable length: 145 cm

  Coating: Hydrophilic

  Lesion entry profile: 0.43 mm
