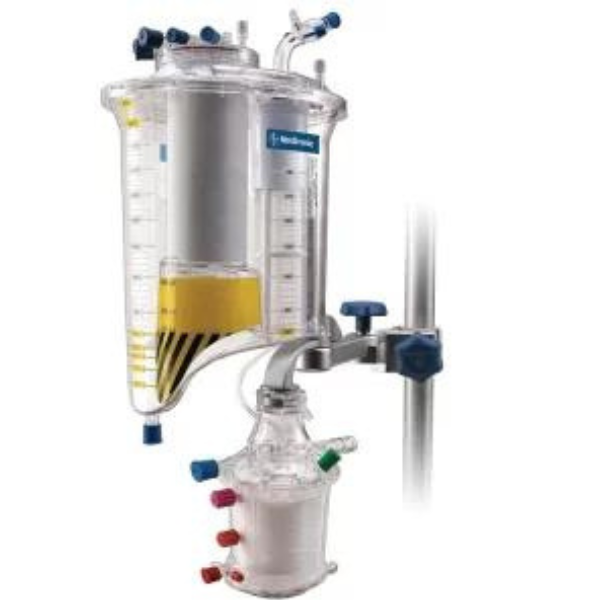

“AFFINITY FUSION Oxygenation System”
AFFINITY FUSION™
Oxygenation System
OVERVIEW
DESIGNED BY PERFUSIONISTS. ENGINEERED BY MEDTRONIC.
The Affinity Fusion™ oxygenation system’s design is based on input from more than 500 perfusionists worldwide. Thoughtfully engineered from inlet to outlet, the Affinity Fusion™ oxygenation system takes a fundamentally different design approach:
- Proactive air handling
- Haemocompatibility
- Improved flexibility
- Integrated arterial filter
- Expanded heat exchanger and gas transfer capabilities
PRODUCT DETAILS: AFFINITY FUSION™ OXYGENATION SYSTEM
Both oxygenator and reservoir device have:
- Blood-contacting materials made from BPA* – and DEHP-free polymers
- 1 to 7 L/min flow rate
- Low system priming volume
- Biocompatible surface coatings
Oxygenator available in:
- Balance™ biosurface coating
- Cortiva™ bioactive surface
Cardiotomy/venous reservoir available in:
- Balance™ biosurface coating
PET HEAT EXCHANGER
SAFE. EFFECTIVE. ENVIRONMENTALLY FRIENDLY.
The higher density structure of the Affinity Fusion™ polyethylene terephthalate (PET) heat exchanger provides improved chemical resistance with a low permeability factor when compared to lower density plastics such as polyurethane or TPU*.
PET heat exchanger features and benefits:
- Resistant to chemical migration
- Durable to withstand the surrounding environment
- Small tube design of capillaries increases heat exchange performance
- Decreases prime volume
- Enables device incineration
| Oxygenator Features | Cardiotomy/Venous Reservoir Features |
|---|---|
|
|
AFFINITY FUSION™ OXYGENATION SYSTEM SPECIFICATIONS
OXYGENATOR
| Membrane type | Microporous polypropylene hollow fiber |
| Membrane surface area | 2.5m2 |
| Heat exchange surface material | Polyethylene terephthalate (PET) |
| Static priming volume | 260 mL |
| Recommended blood flow rate | 1-7 L/min |
| Maximum water side pressure | 30 psi |
| Maximum blood pressure | 750 mm Hg |
| Arterial outlet port | 3/8″ |
| Venous inlet port | 3/8″ |
| Arterial sample port | Female luer port |
| Recirculation port | 1/4″ |
| Cardioplegia port | 1/4″ |
| Gas inlet port | 1/4″ nonbarbed |
| Gas outlet port | 3/8″ nonbarbed |
| Water ports | 1/2″ quick disconnects |
| Filtration | 25 µm |
CARDIOTOMY/VENOUS RESERVOIR
| Reservoir volume capacity | 4500 ml |
| Recommended blood flow rate | 1-7 L/min |
| Maximum cardiotomy flow rate | 6 L/min |
| Minimum operating level | 200 mL at 7L/min |
| Cardiotomy filtration | 30 µm |
| Venous screen | 105 µm |
| Venous inlet, rotatable | 1/2″ with 3/8″ adapter |
| Venous reservoir outlet | 3/8″ |
| Vent/VAVD port | 1/4″ nonbarbed |
| Cardiotomy port (4) | 1/4″ |
| Cardiotomy port (1) | 3/8″ |
| Prime port | 1/4″ nonbarbed |
| Recirculation port | 1/4″ |
| Filtered luer lock ports | 4 |
| Non-filtered luer lock ports | 2 |
| Venous luer lock ports | 2 |
| Positive pressure relief valve crack | <5 mm Hg |
| Vacuum pressure relief valve crack |
|
ORDERING INFORMATION
| Affinity Fusion™ Oxygenation Systems | ||
|---|---|---|
| Model# | Product Description | Units/case |
| CB841 | Oxygenator with integrated arterial filter with Cortiva bioactive surface and cardiotomy/venous reservoir with Balance biosurface | 1 |
| BB841 | Oxygenator with integrated arterial filter and cardiotomy/venous reservoir with Balance biosurface | 1
|
| CB811 | Oxygenator with integrated arterial filter and Cortiva bioactive surface | 1 |
| BB811 | Oxygenator with integrated arterial filter and Balance biosurface | 1 |
| Affinity Fusion™ Accessories and Holders | ||
| Model # | Product Description | Units/Case |
| AUH2093 | Affinity™ orbit holder system | 1 |
| ATP210 | Temperature probe | 1 |
| AMH2014 | Affinity™ manifold holder | 1 |
| RCL841 | Recirculation line | 12 |
MANUALS AND TECHNICAL GUIDES
Instructions for Use
Find this technical manual in the product labeling supplied with each device.
